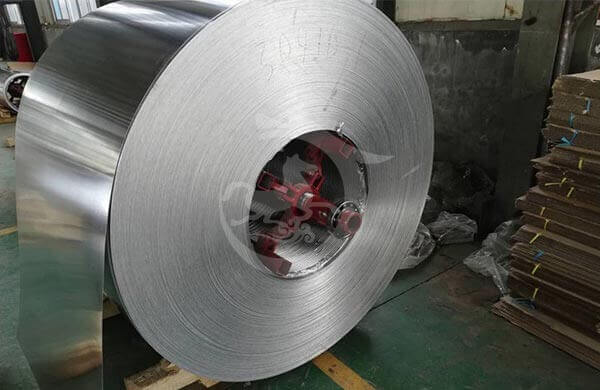

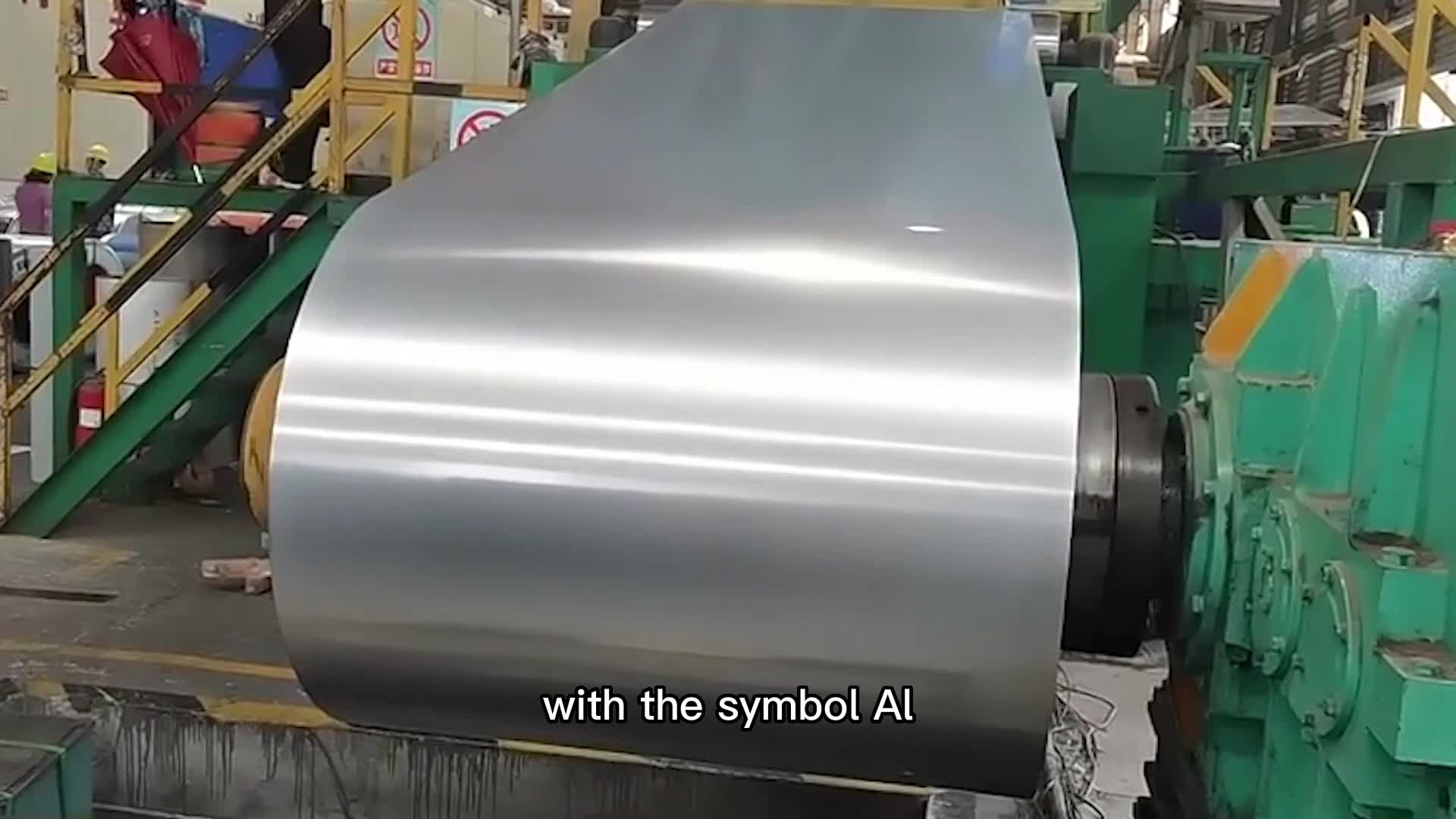

Aluminum coil is cast and rolled machine after calendering, pulling bending angle processing, for the metal products for flying shear. Aluminum coil is widely used in electronics, packaging, construction, machinery and other aspects, the production process has caught up with developed countries. According to the different metal elements contained in the aluminum coil, aluminum coil can be divided into roughly 9 major categories, that is, can be divided into 9 series, the following step by step roughly introduced.
| Product | Aluminum Coil |
|---|---|
| Thickness(mm) | aluminum sheet:0.15-6.0 aluminum plate:6.0-25.0 |
| Width(mm) | 20-2000mm |
| Standard | GB, JIS, DIN, ASTM |
| Surface treatment | Brushed, Mirror, Embossed, Sandblasted, etc |
| Temper | O/H111 H112 H116/H321 H12/H22/H32 H14/H24/H34/H16/H26/H36 H18/H28/H38 H114/H194, etc. |
| Type | coil/sheet/strips/plate |
| Package | Standard export package,such as wooden box or as required. |
| 1000 Series | Industrial Pure Aluminum(1050,1060 ,1070, 1100) |
| 2000 Series | Aluminum-copper alloys(2024(2A12), LY12, LY11, 2A11, 2A14(LD10), 2017, 2A17) |
| 3000 Series | Aluminum-manganese alloys(3A21, 3003, 3103, 3004, 3005, 3105) |
| 4000 Series | Al-Si alloys(4A03, 4A11, 4A13, 4A17, 4004, 4032, 4043, 4043A, 4047, 4047A) |
| 5000 Series | Al-Mg alloys(5052, 5083, 5754, 5005, 5086,5182) |
| 6000 Series | Aluminum Magnesium Silicon Alloys(6063, 6061, 6060, 6351, 6070, 6181, 6082, 6A02) |
| 7000 Series | Aluminum, Zinc, Magnesium and Copper Alloys(7075, 7A04, 7A09, 7A52, 7A05) |
| Element | Silicon | Iron | Copper | Manganese | Magnesium | Chromium | Zinc | Titanium | Aluminum | Other Elements (each) | Other Elements (total) |
| 3105 | 0.6 | 0.7 | 0.3 | 0.30-0.8 | 0.20-0.8 | 0.2 | 0.4 | 0.1 | balance | 0.05 | 0.15 |
Property | Value/Comment |
Specific gravity | 2.7 |
Weight | At 6.35 µm foil weighs 17.2 g/m2 |
Melting point | 660°C |
Electrical conductivity | 37.67 m/mm2d (64.94% IACS) |
Electrical resistivity | 2.65 µΩ.cm |
Thermal conductivity | 235 W/m.K |
Thickness | Foil is defined as metal measuring 0.2mm (or 200 µm and below) |
