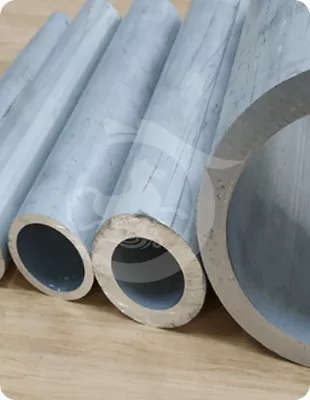

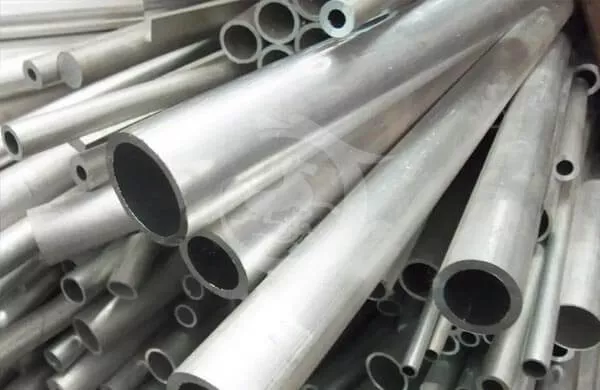

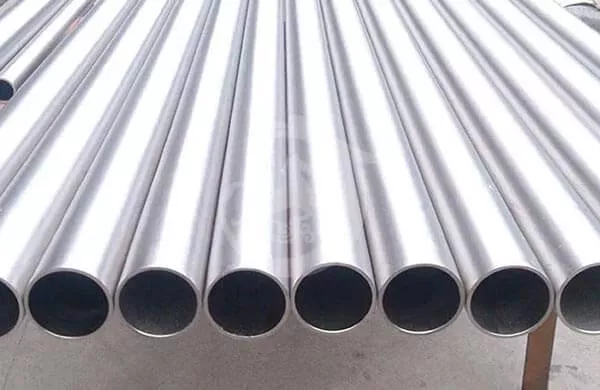

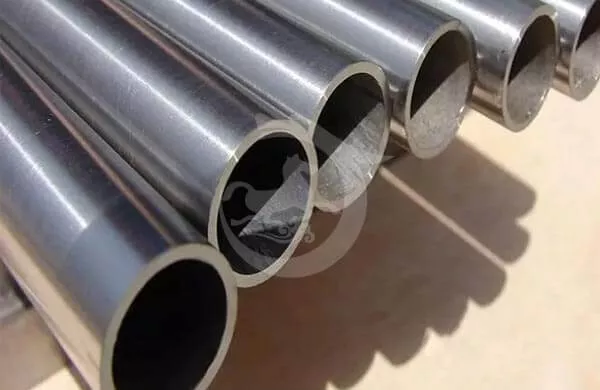

Aluminum tube

Aluminum tube is a kind of non-ferrous metal tube, which is made of pure aluminum or aluminum alloy extruded and processed into a hollow metal tube material along its full length in the longitudinal direction.

It can have one or more closed through-holes, uniform wall thickness and cross-section, and delivered in straight shape or in rolls. Widely used in automobile, ship, aerospace, aviation, electrical appliances, agriculture, electromechanics, household and other industries.

Aluminum Tube Advantages

First, welding technology advantage: suitable for industrial production of thin-walled copper and aluminum tube welding technology, known as a world-class problem, is the key technology of the air conditioner connecting tube aluminum instead of copper.

Second is the service life advantage: from the aluminum tube wall, because the refrigerant does not contain moisture, copper and aluminum connection tube wall will not occur corrosion phenomenon.
Third, the energy-saving advantage: air conditioner indoor unit and outdoor unit connection pipeline, the lower the heat transfer efficiency, the more energy efficient, or, the better the insulation effect, the more power saving.
Fourth, the excellent bending performance, easy to install and move the machine

Product Categories

Aluminum tubes are mainly divided into the following categories

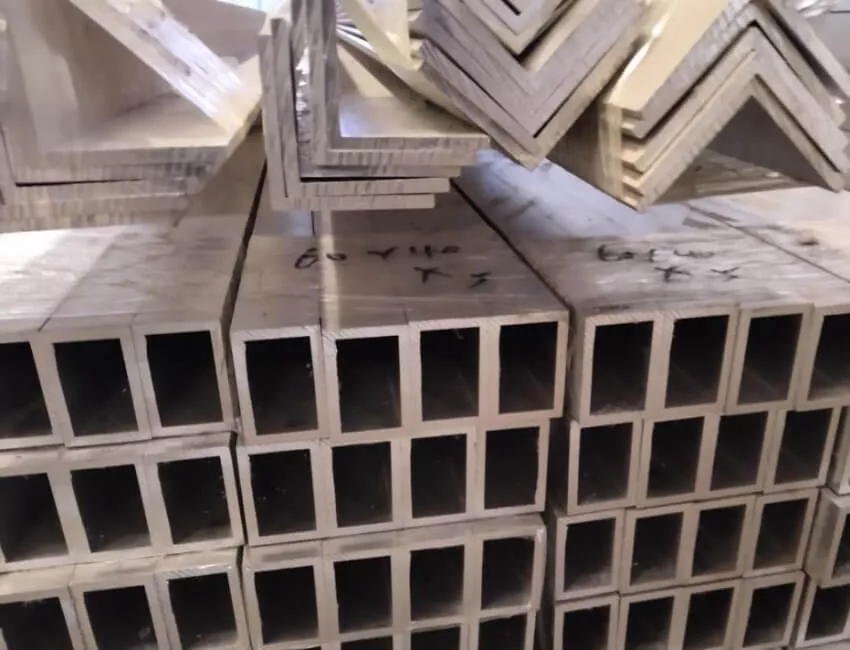

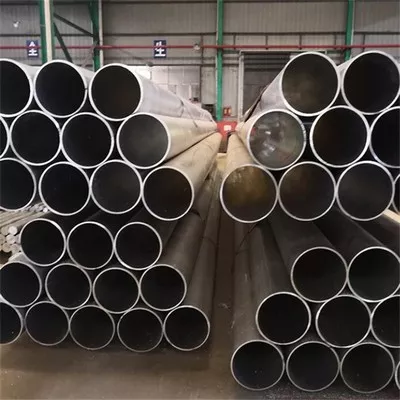

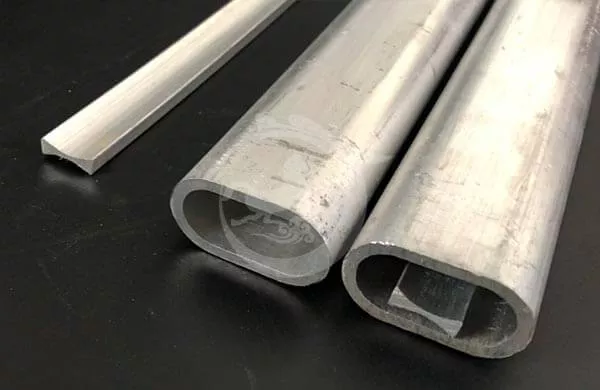

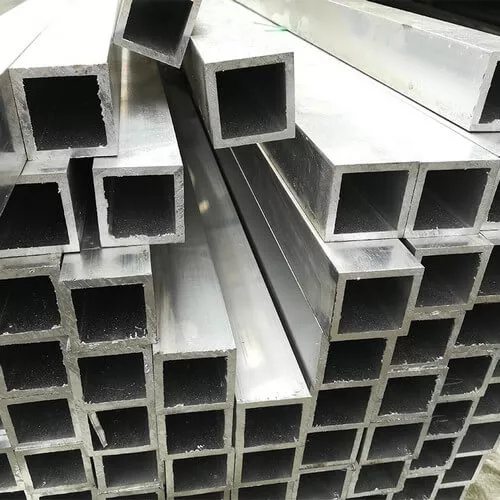

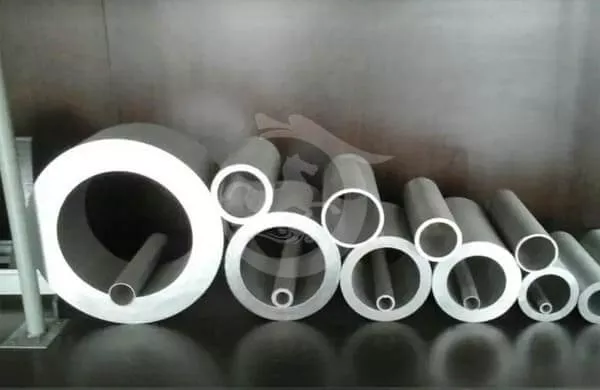

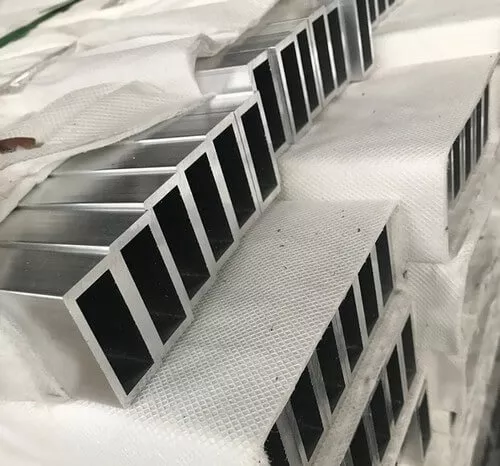

According to the shape:square tube, round tube, pattern tube, shaped tube, global aluminum tube.
According to the extrusion method: seamless aluminum tube and ordinary extrusion tube
According to the precision: ordinary aluminum tube and precision aluminum tube, where the precision aluminum tube generally need to be reprocessed after extrusion, such as cold-drawing precision extraction, rolling.
According to the thickness: ordinary aluminum tube and thin-walled aluminum tube
Performance: corrosion resistance, light weight.

Aluminum tube chemical composition

Alloy

Si

Fe

Cu

Mn

Mg

Cr

Zn

Ti

Zr

Impurity

Al

2014

0.5-1.2

0.7

3.9-5.0

0.4-1.2

0.2-0.8

0.1

0.25

0.15

-

0.15

Rest

2017

0.2-0.8

0.7

3.5-4.5

0.4-1.0

0.4-0.8

0.1

0.25

0.15

-

0.15

Rest

2024

0.5

0.5

3.8-4.9

0.3-0.9

1.2-1.8

0.1

0.25

0.15

-

0.15

Rest

5052

0.25

0.4

0.1

0.1

2.2-2.8

0.15-0.35

0.1

-

-

0.15

Rest

5056

0.3

0.4

0.1

0.05-0.20

4.5-5.6

0.05-0.20

0.1

-

-

0.15

Rest

5083

0.4

0.4

0.1

0.40-1.0

4.0-4.9

0.05-0.25

0.25

0.15

-

0.15

Rest

5754

0.4

0.4

0.1

0.5

2.6-3.6

0.3

0.2

0.15

-

0.15

Rest

6061

0.4-0.8

0.70

0.15-0.40

0.15

0.8-1.2

0.04-0.35

0.25

0.15

-

0.15

Rest

6063

0.2-0.6

0.35

0.1

0.1

0.45-0.9

0.1

0.1

0.1

-

0.15

Rest

6082

0.7-1.3

0.5

0.1

0.4-1.0

0.6-1.2

0.25

0.2

0.1

-

0.15

Rest

7050

0.12

0.15

2.0-2.6

0.1

1.9-2.6

0.04

5.7-6.7

0.06

0.08-0.15

0.15

Rest

7075

0.4

0.5

1.2-2.0

0.3

2.1-2.9

0.18-0.28

5.1-6.1

0.2

-

0.15

Rest

Aluminum tube specifications

Item

Aluminum Tube Supplier

Material

Aluminium





Grade

1000 series: 1050,1060,1070,1080,1100,1435, etc

2000 series: 2011,2014,2017,2024, etc

3000 series: 3002,3003,3104,3204,3030, etc

5000 series: 5005,5025,5040,5056,5083, etc

6000 series: 6101,6003,6061,6063,6020,6201,6262,6082, etc

7000 series: 7003,7005,7050,7075, etc

standards

ASTM, ASME,EN, JIS, DIN,GB/T etc



Size

Outer Diameter:3-250mm

Wall Thickness: 0.3-50mm

Length: 10mm -6000mm





Surface treatment

Mill finish

Anodized

Electrophoresis

Powder coating

Wooden grain

Sand blast

Surface colors

Nature, silver, bronze, champagne, black, gloden, etc

As customized

Temper

T3-T8





Moulding/Pattern



1.  Using our moulds, no fee

2.  Using customer drawing, opening mould, usually about 5 tons the moulding fee is free.

3.  Can be diguessed.











Application



1. Lighting,solar reflector plate.

2.architectural appearance, interior decoration:ceiling,metope,

furniture,cabinets and so on.

3.elevator,nameplate, bags.

4.automotive interior and exterior decoration.

5. Interior decoration: such as photo frame.

6.household appliances, refrigerator, microwave oven,

audio equipment.

7. Aerospace and military aspects.

8, machinery parts processing, mold manufacturing .

9. chemical/insulation pipeline coating.

Aluminum tube mechanical properties

Aluminum Alloy

Aluminium Temper

Elastic Modulus
E -
(106 psi)

Shear Modulus
- G -
(106 psi)

Yield Strength
(103 psi)

Tensile Strength
(103 psi)

1100



10.0

3.75

3.5

11

1100

H12

10.0

3.75

11

14

2014



10.8

4.00

8

22

2014

T6

10.6

4.00

58

66

2014

T62

10.8

4.00

59

67

2017

T4

10.5

3.95

32

55

2024

T3

10.6

4.00

42

64

2024

T4

10.6

4.00

40

62
