Aluminum Tape is made of pure aluminum or aluminum alloy cast rolled aluminum coils, hot rolled aluminum coils, rolled by cold rolling mill into thin aluminum coils of different thicknesses and widths, and then slit longitudinally by slitting machine into aluminum Tape of different widths according to usage.
Aluminum Tape is made of pure aluminum or aluminum alloy cast rolled aluminum coils, hot rolled aluminum coils, rolled by cold rolling mill into thin aluminum coils of different thicknesses and widths, and then slit longitudinally by slitting machine into aluminum Tape of different widths according to usage.
The common alloy grades of aluminum strip are 1050, 1060, 1070, 1100, 3003, 3004, 5005, 5052, 8011, etc. The common states are O state and H state. The common states are O and H. O means soft state, H means hard state, and O and H can be followed by numbers to indicate the degree of softness and hardness, and the degree of annealing.
The specific uses of aluminum strip are: aluminum strip for transformer (transformer aluminum foil), aluminum strip for high frequency welding hollow aluminum strip, aluminum strip for fin radiator, aluminum strip for cable, aluminum strip for stamping, aluminum strip for aluminum edge strip, etc.
The categories of aluminum alloy strips are: pure aluminum strips, transformer aluminum strips, super hard aluminum strips, full soft aluminum strips, semi-hard aluminum strips, and rust-proof aluminum strips.
Aluminum strip is a deep-processed aluminum product formed by slitting and processing aluminum coils. It is an important raw material in the industry.
Depending on the alloying elements contained in the strip, aluminum strip is divided into 8 series, just like aluminum sheet. However, the commonly used series are 1000, 3000, 5000 and 8000 series.
According to the annealing state of aluminum strip, it can be divided into full soft (o-state) semi-hard (H24) and full hard (h18). The most commonly used should belong to the full soft series, because the O state is easier to stretch and bend.

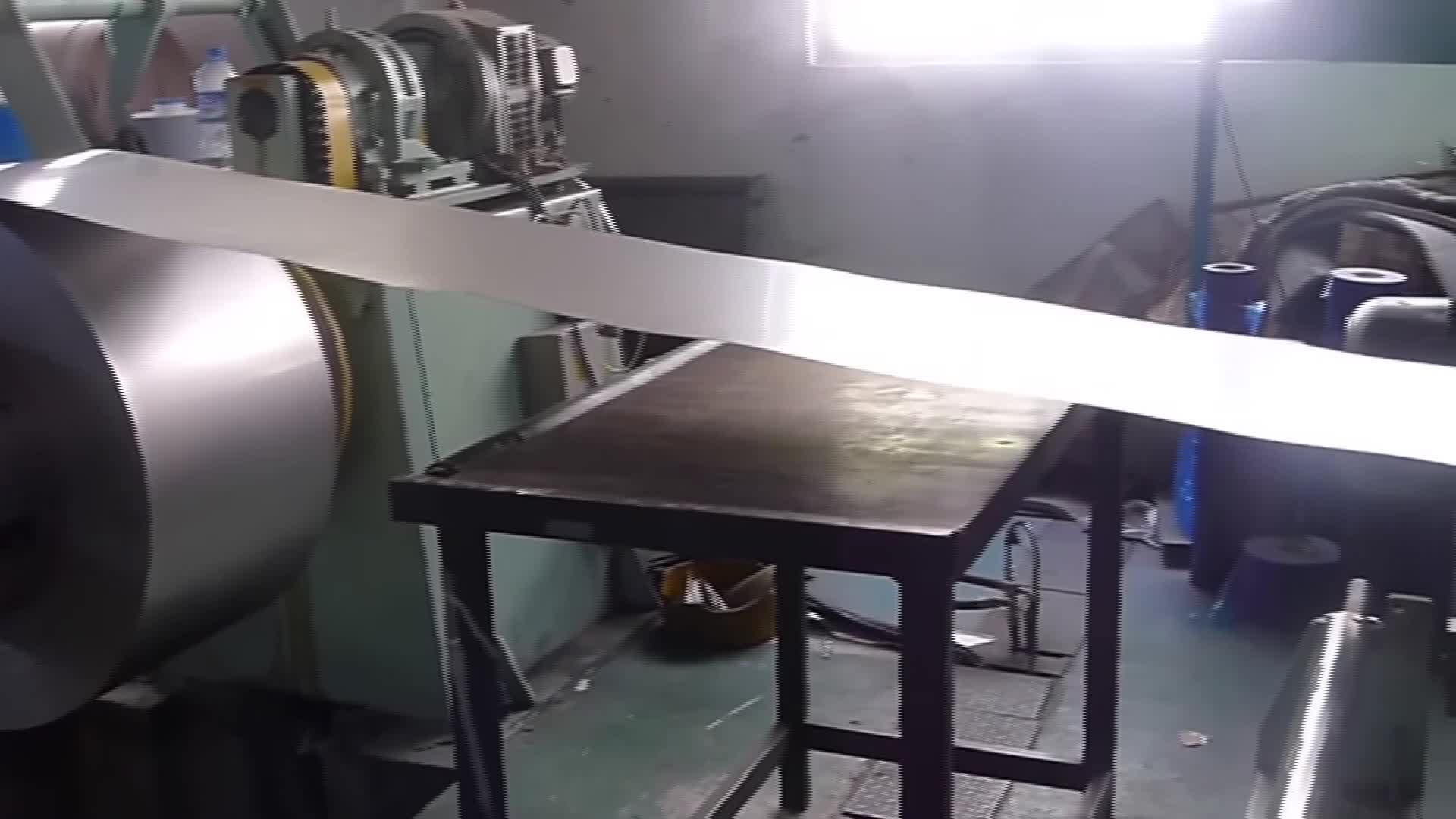

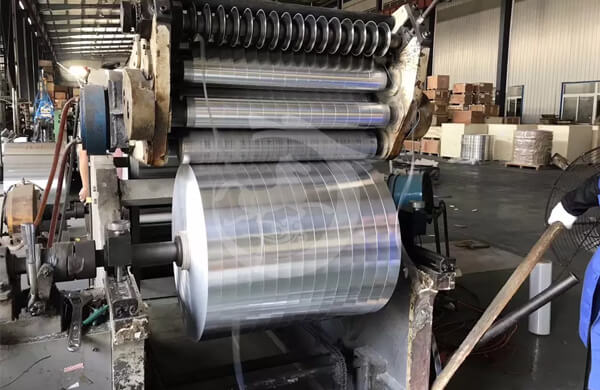

The main processing equipment for aluminum strip is the slitting machine, which can be divided into the required length and width according to the needs. Of course, the equipment for slitting processing is universal and can also be used for processing copper coils, and the processed product is called copper strip.
The international raw material for electronic products is no longer purely dependent on copper tape, because the electrical conductivity of aluminum is just lower than copper, so aluminum tape instead of copper tape is becoming a popular trend in the international.
| Product Name | Aluminum Strip |
|---|---|
| Alloy/Grade | 1000/3000/4000/5000/6000/7000 Series |
| Temper | O-H112,T3-T8,T351-T851 |
| Thickness | 0.1mm-6.5mm or as your requirement |
| Width | As per your requirements |
| Length | As per your requirements |
| Application | Industry/Decoration/Building/Packing/Pressing,etc |
| Surface treatment | Mill Finish/Coated/Power Coated/Anodized/Polished mirror/Emobossed |
| Tolerance | As per your requirements |
| Delivery Time | 7-30 days after order confirmation |
| MOQ | 5Ton |
| Loading Port | Shanghai port |
| Coil ID | As your requirements |
| Price Terms | FOB CIF CFR EXW |
| Payment Terms | Less than USD$1000000:TT with 30% deposit,and balance against the copy of B/L |
| NaN | Over USD$1000000:TT with 10% deposit,the balance 90% LC at sight |
| Standards | ASTM-B209,EN573-1,GB/T3880.1-2006 |
| Element | 3105 |
| Silicon | 0.6 |
| Iron | 0.7 |
| Copper | 0.3 |
| Manganese | 0.30-0.8 |
| Magnesium | 0.20-0.8 |
| Chromium | 0.2 |
| Zinc | 0.4 |
| Titanium | 0.1 |
| Aluminum | balance |
| Other Elements (each) | 0.05 |
| Other Elements (total) | 0.15 |
| Thickness (inch) | Yield Strength Min. (ksi) | Tensile Strength (ksi) | Elongation (%) | |
| Min. | ||||
| Min. | Max. | |||
| 0.017 – 0.019 | 15 | 19 | 26 | 1 |
| 0.020 – 0.031 | 15 | 19 | 26 | 1 |
| 0.032 – 0.050 | 15 | 19 | 26 | 2 |
| 0.051 – 0.080 | 15 | 19 | 26 | 3 |
| Material: aluminum alloy A3003, A3005, A3105 | Aluminum thickness: 0.12-1.5mm |
| Strip width: 120,123,125,137,140,173,174,187,229 mm or by customer's option | Interior diameter: 505mm, etc |
| weight: 0.5-3.0T/coil or by buyer's option | Surface treatment: PUPA/PEPA coating |
| Color: white, silver, brown, beige, green, blue and other solid RAL colors, wooden grain,, plain color, metallic, patterned, etc | Dried and baked: oven baked at 450 degree F |
| Coating thickness: 24-26 micron | Coating hardness: (pencil hardness) HB |
| Coating adhesive: no lower than first grade | Impact resistance: no cracking and peeling(50kg/cm, ASTMD-2794:1993) |
| Flexibility(T-bend): 7T or by your option | MEK resistance: more than 100 |
| Outer packing: wooden plate, covering with craft paper and film, Eye to Sky or wall to Sky packing. | |
