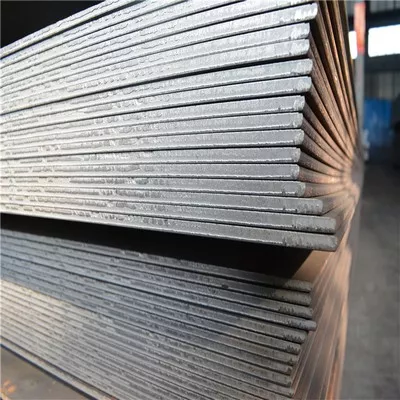

Wear-resistant steel plate

The abrasion resistant sheet consists of two parts: a mild steel plate and an alloy wear-resistant layer, with the wear-resistant layer generally accounting for 1/3-1/2 of the total thickness, which provides a combination of strength, toughness and plasticity to resist external forces, while the wear-resistant layer provides wear resistance to meet the requirements of the specified working conditions.

Abrasion resistant sheet applications

1) Thermal power plants: medium speed coal mill barrel liner, fan impeller casing, dust collector inlet flue, ash duct, bucket wheel liner, separator connection pipe, coal crusher liner, coal hopper and crusher liner, burner burner, coal drop hopper and funnel liner, air preheater bracket guard tile, separator guide blade. The above-mentioned parts do not have too high requirements on the hardness and wear resistance strength of wear-resistant steel plates, and can be made of wear-resistant steel plates with a thickness of 6-10mm made of NM360/400.

(2) Coal field: feed chute and hopper liner, hopper liner, fan blade, pusher base plate, cyclone dust collector, coke guide liner, ball mill liner, drill stabilizer, spiral feeder bell and base, kneader bucket liner, ring feeder, dump truck base plate. The coal yard operation environment is harsh, and the corrosion resistance and wear resistance strength of the wear-resistant steel plate have certain requirements, and it is recommended to use the wear-resistant steel plate with the material NM400/450 HARDOX400 thickness of 8-26mm.
3) Cement plant: chute liner, end liner, cyclone dust collector, powder separator blade and guide blade, fan blade and liner, recycling hopper liner, screw conveyor base plate, pipe assembly, molten block cooling tray liner, conveying trough liner. These parts also need wear resistance, corrosion resistance to be a little better wear-resistant steel plate, you can use the material NM360/400 HARDOX400 thickness of 8-30mmd wear-resistant steel plate.
4) Loading machinery: unloader chain plate, hopper liner, grapple edge plate, automatic dump truck dumper plate, dump truck body. This requires a wear-resistant steel plate with extremely high wear strength and hardness, and it is recommended to use a wear-resistant steel plate with material NM500 HARDOX450/500 thickness of 25-45MM.
5) Mining machinery: ore and stone crusher liners and blades, conveyor liners and baffles. Such parts need very high wear resistance, available material NM450/500 HARDOX450/500 thickness in 10-30mm wear-resistant steel plate.
6) Construction machinery: cement pusher tooth plate, concrete mixing building, mixer liner, dust collector liner, brick making machine mold plate. Recommended to use the material NM360/400 wear-resistant steel plate with thickness 10-30mm.
(7) Construction machinery: loader, bulldozer, excavator bucket plate, side edge plate, bucket bottom plate, blade, rotary drilling rig drill pipe. This kind of machinery needs especially hard and wear-resistant steel plate with high wear resistance, available material NM500 HARDOX500/550/600 high strength wear-resistant steel plate with thickness of 20-60mm.
(8) Metallurgical machinery: iron ore sintering machine, conveying elbow, iron ore sintering machine lining plate, scraper lining plate. As such machinery needs high temperature resistance and extremely hard wear-resistant steel plate. Therefore, it is recommended to use HARDOX600HARDOXHiTuf series wear-resistant steel plate.
(9) Wear-resistant steel plate can also be applied to sand mill barrel and blade, various kinds of yard and dock machinery then parts, bearing structure parts, railroad wheel structure parts, rolls, etc.


Abrasion resistant sheet chemical composition

Grade C Cu Mn P S
ASTM A242 TP1 ≤0.15 ≤0.20 ≤1.00 ≤0.15 ≤0.05

Abrasion resistant sheet physical properties

Grade Yield Strength (MPa) Ultimate Tensile Strength (MPa) Elongation at Break (%)
ASTM A242 TP1 345 480 21

Abrasion resistant sheet specifications

Product Name

Wear-resistant Steel Plate

Standard

ASTM, AiSi, DIN, EN, GB, JIS

Type

Plate

Application

Equipment, Machine etc

Certification

ISO

Tolerance

±1%

Processing Service

Bending, Welding, Decoiling, Punching, Cutting, checker plate

MOQ

1 Ton

Technique

Cold Rolled Hot Rolled

Payment Term

30%T/T Advance + 70% Balance

Sample

Provided

Delivery time

7-15 Days

Usage

Construction Decoration

Advantage

1.good Reputation 2.Samples
