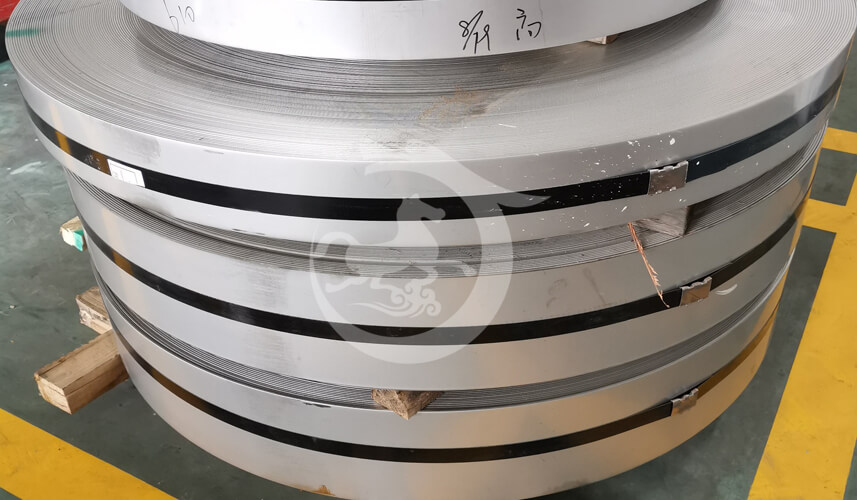

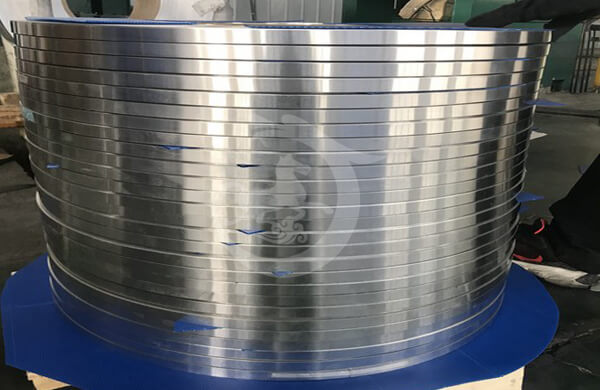

1060 aluminum strip

Aluminum strip is made of pure aluminum or aluminum alloy cast rolled aluminum coils, hot rolled aluminum coils, rolled by cold rolling mill into thin aluminum coils of different thicknesses and widths, and then slit longitudinally by slitting machine into aluminum strips of different widths according to usage.

Product Classification:

The common alloy grades of aluminum strip are 1050, 1060, 1070, 1100, 3003, 3004, 5005, 5052, 8011, etc. The common states are O state and H state. The common states are O and H. O means soft state, H means hard state, and O and H can be followed by numbers to indicate the degree of softness and hardness, and the degree of annealing.

The specific uses of aluminum strip are: aluminum strip for transformer (transformer aluminum foil), aluminum strip for high frequency welding hollow aluminum strip, aluminum strip for fin radiator, aluminum strip for cable, aluminum strip for stamping, aluminum strip for aluminum edge strip, etc.

The categories of aluminum alloy strips are: pure aluminum strips, transformer aluminum strips, super hard aluminum strips, full soft aluminum strips, semi-hard aluminum strips, and rust-proof aluminum strips.

Processing Technology:

Aluminum strip is a deep-processed aluminum product formed by slitting and processing aluminum coils. It is an important raw material in the industry.

Depending on the alloying elements contained in the strip, aluminum strip is divided into 8 series, just like aluminum sheet. However, the commonly used series are 1000, 3000, 5000 and 8000 series.

According to the annealing state of aluminum strip, it can be divided into full soft (o-state) semi-hard (H24) and full hard (h18). The most commonly used should belong to the full soft series, because the O state is easier to stretch and bend.

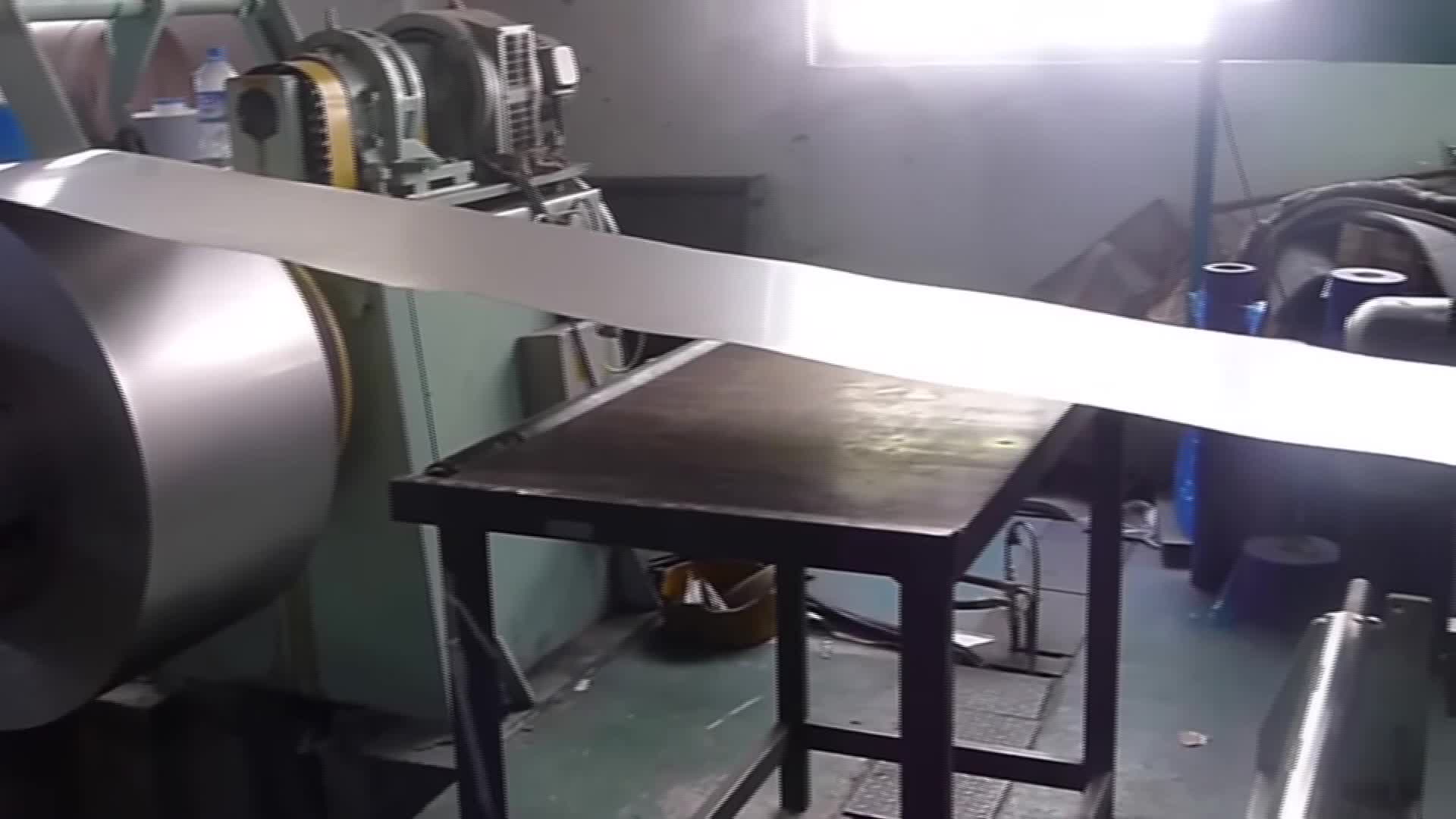

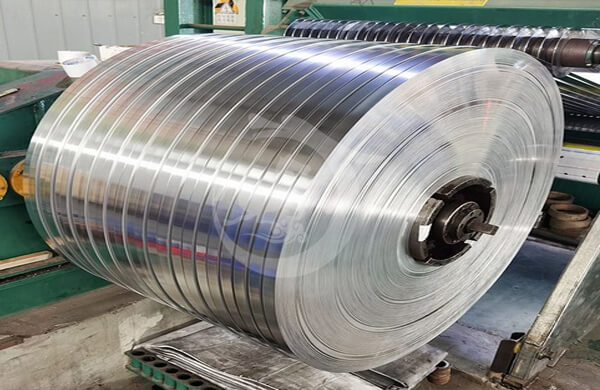

The main processing equipment for aluminum strip is the slitting machine, which can be divided into the required length and width according to the needs. Of course, the equipment for slitting processing is universal and can also be used for processing copper coils, and the processed product is called copper strip.

The international raw material for electronic products is no longer purely dependent on copper tape, because the electrical conductivity of aluminum is just lower than copper, so aluminum tape instead of copper tape is becoming a popular trend in the international.

Product Introduction of 1060 aluminum strip

Chemical composition of 1060 aluminum strip

Mechanical property of 1060 aluminum strip

Product Applications of 1060 aluminum strip

Aluminum strip has many applications, such as: aluminum composite tubes, cables, fiber optic cables, transformers, heaters, louvers, etc.

• 1060 is typically used for chemical equipment where high corrosion resistance and formability are required, but not high strength.
• 1100 Used for processing parts that require good formability and high corrosion resistance but do not require high strength, such as chemical products, food industry devices and storage containers, sheet machined parts, deep drawn or spun concave vessels, welded parts, heat exchangers, printing plates, nameplates, reflective appliances
• 3004 Sheets, thick plates, drawn tubes. Extruded tubes as long as they are used for all-aluminum can bodies, parts requiring a higher alloy than 3003, chemical production and storage devices, thin sheet machined parts, construction baffles, cable ducts, sewers, various lamp parts.
• 3003 sheet. Strip. Foil. Thick plates, drawn tubes. Extruded tubes. Profiles. Bar. Wire. Cold worked bar, cold worked wire, rivet wire, forgings, foil, heat sink material is mainly used for processing parts that require good forming properties, high corrosion resistance, or good weldability, or workpieces that require both these properties and higher strength than 1*** system alloys, such as tanks and tanks for transporting liquids, pressure tanks, storage devices, heat exchangers, chemical equipment, aircraft fuel tanks, oil ducts, reflectors kitchen equipment, washing machine cylinders, rivets, welding wire.
• 5052 This alloy has good forming and processing properties, corrosion resistance, candleability, fatigue strength and medium static strength, used in the manufacture of aircraft fuel tanks, fuel pipes, and sheet metal parts of transportation vehicles, ships, instruments, street light brackets and rivets, hardware products, etc.
