410S Stainless Steel Square Pipe
304 Stainless Steel Square Pipe
201 Stainless Steel Square Pipe
01 / 04

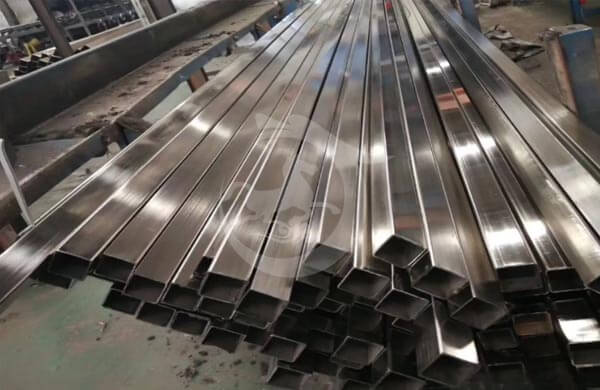

410S Stainless Steel Square Pipe

410S stainless steel square tube has better toughness, plasticity and cold deformation, its rust resistance and corrosion resistance and weldability are better than 410, 420 series, 410S is improved 410 steel corrosion resistance and forming properties of steel, can be higher toughness and impact load parts, such as automobile turbine blades, structural frame, lining, bolts, nuts, etc.

Product Details

410S Stainless Steel Square Pipe

410S stainless steel square tube has better toughness, plasticity and cold deformation, its rust resistance and corrosion resistance and weldability are better than 410, 420 series, 410S is improved 410 steel corrosion resistance and forming properties of steel, can be higher toughness and impact load parts, such as automobile turbine blades, structural frame, lining, bolts, nuts, etc.

Introduction

Stainless steel square tube is a kind of hollow long steel, because the section is square, it is called square tube. A large number of pipes are used for conveying fluids, such as oil, natural gas, water, gas, steam, etc. In addition, when the bending and torsional strength are the same, the weight is lighter, so it is also widely used in the manufacture of mechanical parts and engineering structures.

Classification

Stainless steel square pipe classification: square pipe is divided into two categories: seamless steel pipe and welded steel pipe (seamed pipe). According to the cross-sectional shape, it can be divided into square and rectangular pipes. The widely used round steel pipes are round steel pipes, but there are also some semicircular, hexagonal, equilateral triangle, octagonal and other special-shaped steel pipes.

For stainless steel square pipes under fluid pressure, hydraulic tests should be carried out to check their pressure resistance and quality. If there is no leakage, wetting or expansion under the specified pressure, it is qualified. Some steel pipes should be rolled according to standards or requirements of the buyer. Edge test, flaring test, flattening test, etc.

Square tube specification: 5*5~150*150 mm Thickness: 0.4~6.0 mm

Square tube material: 304, 304L, TP304, TP316L, 316, 316L, 316Ti, 321, 347H, 310S.

Production Process

Round bar preparation → heating → hot rolling and piercing → cutting head → pickling → grinding → lubrication → cold rolling → degreasing → solution heat treatment → straightening → pipe cutting → pickling → finished product inspection.

performance analysis

Metals can react with oxygen in the atmosphere to form an oxide film on the surface. The iron oxide formed on ordinary carbon steel will continue to oxidize, so that the rust will continue to expand, and eventually holes will be formed. This protects the carbon steel surface by electroplating with paint or oxidation-resistant metal, but this protective layer is only a thin film, and if the protective layer is destroyed, the underlying steel begins to rust again. Whether the stainless steel pipe is corroded is related to the chromium content in the steel. When the chromium content in the steel reaches 12%, in the atmosphere, a layer of passivation and dense chromium-rich oxide is formed on the surface of the stainless steel pipe to protect the surface, which can prevent further re-oxidation. This oxide layer is extremely thin, through which the natural luster of the steel surface can be seen, giving stainless steel a unique surface. If the chromium film is destroyed, the chromium in the steel and the oxygen in the atmosphere will regenerate a passive film, which will continue to play a protective role. In some special environments, stainless steel will also fail due to some local corrosion, but different from carbon steel, stainless steel will not fail due to uniform corrosion, so the corrosion allowance is meaningless for stainless steel pipes.

Product Introduction of 410S Stainless Steel Square Pipe

ItemStainless steel square tube
Product Name410S Stainless Steel Square Pipe Manufacturer
Place of OriginShandong,China
Brand NameKuaima
Material410S
Grade400 Series
TypeWelded,Seamless
SizeAccording to customer needs
SurfaceBrushed, Polished, Etched,etc.
Tolerance±1%
MOQNegotiable
ApplicationDecoration,Food Grade,Petroleum, Chemical, Medical, Light Industry, Mechanical Instrumentation, etc.
StandardASTM,AISI,GB,DIN,JIS,EN,etc.
CertificationISO,CE,etc.
Processing ServiceBending, Welding, Decoiling, Punching, Cutting, Moulding
Payment termsL/C,T/T,D/P,etc.(According to customer needs)
Price TermCIF,CFR,FOB,EXW,etc.

chemical composition of 410S Stainless Steel Square Pipe

Chemical Material Composition of SS 410 seamless pipes
Grade Ni Mn P C S Si Cr Mo N
410 min. 11.5
max. 0.75 1 0.04 0.15 0.03 1 13.5

mechanical property of 410S Stainless Steel Square Pipe

SS 410 Seamless Pipes Mechanical Properties
Tempering Temperature (0C) Tensile Strength (MPa) Impact Charpy V (J) Elongation (% in 50mm) Yield Strength 0.2% Proof (MPa) Hardness Brinell (HB)
Annealed * 480 min 16 min 275 min
204 1310 30 16 1000 388
316 1240 36 14 960 325
427 1405 # 16 950 401
538 985 # 16 730 321
593 870 39 20 675 255
650 755 80 23 575 225
