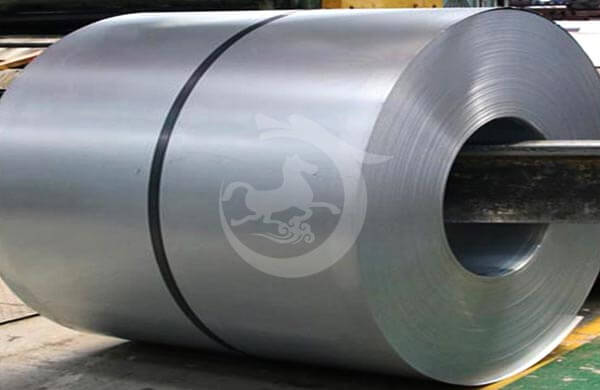

201 stainless steel coil is a lower-cost alternative to theconventional Cr-Ni austenitic stainless steels, such as 304 coil. 201 stainless steel coils have relatively lower ductility and formability compared to 301 stainless steel coil.
The nickel in Type 201 is lower than Type 301 and is replaced with a manganese-nitrogen combination allowing this type to develop high yield and tensile strength in the annealed condition. Although the mechanical and corrosion properties are alike, its general uses do not cover the field of the comparative 300 series. Type 201 is nonmagnetic when annealed yet slightly magnetic when cold-worked. Resistance to abrasion is favorable.
Type 201 is normally limited to nearly flat or shallow drawn products such as automotive trim, builder’s hardware comprised of window and door components, flatware, rapid transit cars and trailers.
Carbon: 0.15 max Manganese: 5.50- 7 .50 max Phosphorus: 0.060 max Sulfur: 0.030 max Silicon: 0.75 max Chromium: 18.00- 20.00 max Nickel: 3.50- 5.50 Nitrogen: 0.25 max Iron: Balance
#2B - Smooth finish produced by cold rolling, annealing and descaling. A light cold rolling pass is added after anneal with polished rolls giving it a brighter finish than 2D.
#BA- Bright annealed cold rolled and bright annealed
Stainless Steel Coil/Sheet/Plate Information | |||||||||
| Surface Finish | Grade Series | Thickness(mm) | Width(mm) | |||||
Main Dimension | |||||||||
20-850 | 1000 | 1219 | 1240 | 1250 | 1500 | ||||
Hot Rolled | No.1 / 2E | 201/304/316L | 2.2-12.0 | √ | √ | √ | √ | √ | |
Cold Rolled | 2B | 201/304/316L | 0.25-3.0 | √ | √ | √ | √ | √ | √ |
410S/430 | 410S/430 | 0.25-3.0 | √ | √ | √ | √ | |||
No.4 /Hairline Mirror / Linen SB | 201/304/316L | 0.22-3.0 | √ | √ | √ | √ | √ | √ | |
410S/430 | 410S/430 | 0.25-3.0 | √ | √ | √ | √ | √ | ||
BA | 201/304 | 0.2--1.8 | √ | √ | √ | √ | √ | √ | |
410S/430 | 410S/430 | 0.25-3.0 | √ | √ | √ | ||||
2BA | 304/410S/430 | 0.25-2.0 | √ | √ | √ | √ | |||
If you need, we can customize the size according to your requirements |
Chemical composition and mechanical properties of stainless steel coils | |||||||||
Grade | Chemical Composition (%) | Mechanical Performance | |||||||
C | Si | Mn | P | S | Ni | Cr | Mo | Hardness | |
201 | ≤0.15 | ≤1.00 | 5.5/7.5 | ≤0.060 | ≤0.03 | 3.5/5.5 | 16.0/18.0 | - | HB≤241,HRB≤100, HV≤240 |
304 | ≤0.08 | ≤1.00 | ≤2.00 | ≤0.045 | ≤0.03 | 8.0/11.0 | 18.0/20.0 | - | HB≤187,HRB≤90,HV≤200 |
316 | ≤0.08 | ≤1.00 | ≤2.00 | ≤0.045 | ≤0.03 | 10.0/14.0 | 16.0/18.0 | 2.0/3.0 | HB≤187,HRB≤90,HV≤200 |
316L | ≤0.03 | ≤1.00 | ≤2.00 | ≤0.045 | ≤0.03 | 10.0/14.0 | 16.0/18.0 | 2.0/3.0 | HB≤187,HRB≤90,HV≤200 |
410 | ≤0.15 | ≤1.00 | ≤1.25 | ≤0.060 | ≤0.03 | ≤0.060 | 11.5/13.5 | - | HB≤183, HRB≤88 HV≤200 |
430 | ≤0.12 | ≤1.00 | ≤1.25 | ≤0.040 | ≤0.03 | - | 16.0/18.0 | - | HB≤183, HRB≤88 HV≤200 |
Springs
Utensils
Food Service
Appliances
Clamps
