Focus on manufacturing high-quality steel, reliable price, fast delivery! We mainly deal in stainless steel, carbon steel, galvanized steel, ppgi and so on. professional team.

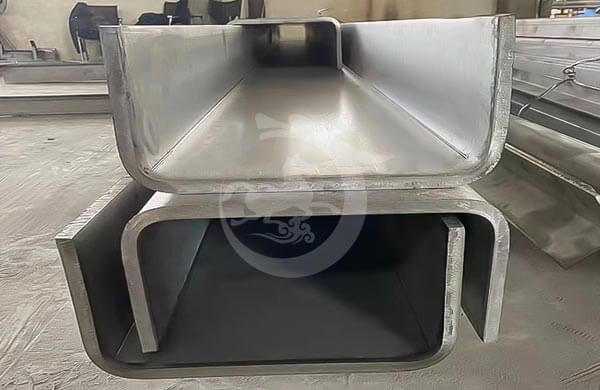

Stainless steel channel is the cross-sectional shape of the groove-shaped long steel. The same as the I-beam, stainless steel channel is also divided into two types of ordinary channel and light channel, the same type and specification expressed in mm of waist height (h) × leg width (b) × waist thickness (d).
(1) Hot rolled stainless steel ordinary channel steel main use: ordinary channel steel is mainly used in building structures, vehicle manufacturing and other industrial structures, often used in conjunction with I-beams.
(2) Hot rolled stainless steel light channel is a kind of steel with wide leg and thin wall, which has better economic effect than ordinary hot rolled channel. Main uses: construction and steel frame structure, etc. with.
Stainless steel production of commonly used stainless steel channel material: 201, 202, 301, 304, 321, 316, 316L, special materials can generally be customized.
Stainless steel channel is the cross-sectional shape of the groove-shaped long steel. The same as I-beam, stainless steel channel steel is also divided into two types of ordinary channel steel and light channel steel, model and specifications are also expressed in terms of waist height (h) × leg width (b) × waist thickness (d) of millimeters, such as 120 × 53 × 5 channel steel, that is, the waist height of 120mm, round steel, need to add a, b, c, etc. to the right of the model to distinguish. Usually, stainless steel channel steel to the waist height of the number of centimeters to indicate its model, such as the above channel steel called 12 # channel steel. The specification range of channel steel is 5-40#. Including and sign and other requirements in accordance with GB2101-80 regulations.
Size(mm) H×B | Thickness (mm) | ||||||||
3 | 4 | 5 | 6 | 7 | 8 | 9 | 10 | 12 | |
40×20 | 1.79 | ||||||||
50×25 | 2.27 | ||||||||
60×30 | 2.74 | 3.56 | 4.37 | 5.12 | |||||
70×35 | 3.23 | 4.21 | 5.17 | 6.08 | |||||
80×40 | 3.71 | 4.84 | 5.96 | 7.03 | |||||
90×45 | 4.25 | 5.55 | 6.83 | 8.05 | |||||
100×50 | 4.73 | 6.18 | 7.62 | 8.98 | 10.3 | 11.7 | 13.0 | 41.2 | |
120×60 | 9.20 | 10.9 | 12.6 | 14.2 | |||||
130×65 | 10.1 | 11.9 | 13.8 | 15.5 | 17.3 | 19.1 | |||
140×70 | 12.9 | 14.9 | 16.8 | 18.8 | 20.7 | ||||
150×75 | 13.9 | 16.0 | 18.1 | 20.2 | 22.2 | 26.3 | |||
160×80 | 14.8 | 17.1 | 19.3 | 21.6 | 23.8 | 28.1 | |||
180×90 | 16.7 | 19.4 | 22.0 | 24.5 | 27.0 | 32.0 | |||
200×100 | 18.6 | 21.6 | 24.5 | 27.4 | 30.2 | 35.8 |
Grade | C | Mn | Si | P | S | Cr | Mo | Ni |
---|---|---|---|---|---|---|---|---|
SS 304 | 0.08 max | 2 max | 0.75 max | 0.045 max | 0.030 max | 18 – 20 | – | 8 – 11 |
SS 304L | 0.035 max | 2.0 max | 1.0 max | 0.045 max | 0.03 max | 18 – 20 | - | 8 – 13 |
SS 316 | 0.08 max | 2.0 max | 1.0 max | 0.045 max | 0.030 max | 16.00 - 18.00 | 2.00 - 3.00 | 11.00 - 14.00 |
SS 316L | 0.035 max | 2.0 max | 1.0 max | 0.045 max | 1.0 max | 16.00 - 18.00 | 16.00 - 18.00 | 10.00 - 14.00 |
Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
---|---|---|---|---|
8.0 g/cm3 | 1400 °C (2550 °F) | Psi – 75000 , MPa – 515 | Psi – 30000 , MPa – 205 | 35 % |
