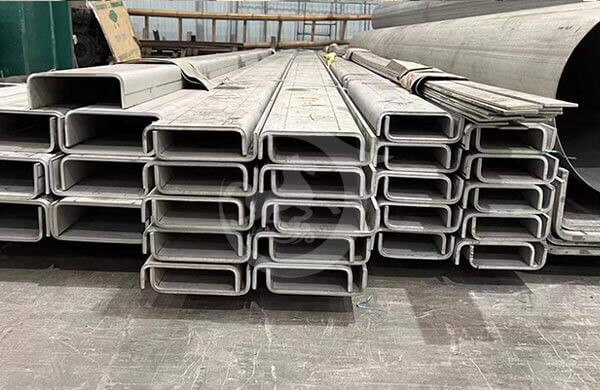

304 stainless steel U channel is food grade with high finish and can be used for structural parts, building structures, etc.
304 stainless steel U channel is the stainless steel channel made of 304 stainless steel. Stainless steel channel is the cross-sectional shape of the groove-shaped long steel. The same as I-beam, stainless steel channel steel is also divided into two types of ordinary channel steel and light channel steel, model and specification of the same expressed in terms of waist height (h) × leg width (b) × waist thickness (d) of the number of millimeters, such as 120 × 53 × 5 channel steel. Can also be waist height of the number of centimeters to indicate its model, such as the upper channel steel called 12 # channel steel, its specification range of 5-40 #.
304 stainless steel channel as the most commonly used stainless steel channel, commonly used in construction, steel frame structure, vehicle manufacturing and other industrial structures.
304 stainless steel is a general-purpose stainless steel material, relatively good in terms of high temperature resistance, able to reach 1000-1200 degrees. 304 stainless steel has excellent stainless corrosion resistance and good resistance to intergranular corrosion.
Stainless steel channel is the cross-sectional shape of the groove-shaped long steel. The same as I-beam, stainless steel channel steel is also divided into two types of ordinary channel steel and light channel steel, model and specifications are also expressed in terms of waist height (h) × leg width (b) × waist thickness (d) of millimeters, such as 120 × 53 × 5 channel steel, that is, the waist height of 120mm, round steel, need to add a, b, c, etc. to the right of the model to distinguish. Usually, stainless steel channel steel to the waist height of the number of centimeters to indicate its model, such as the above channel steel called 12 # channel steel. The specification range of channel steel is 5-40#. Including and sign and other requirements in accordance with GB2101-80 regulations.
Stainless steel production of commonly used stainless steel channel material: 201, 202, 301, 304, 321, 316, 316L, special materials can generally be customized.
Size(mm) H×B | Thickness (mm) | ||||||||
3 | 4 | 5 | 6 | 7 | 8 | 9 | 10 | 12 | |
40×20 | 1.79 | ||||||||
50×25 | 2.27 | ||||||||
60×30 | 2.74 | 3.56 | 4.37 | 5.12 | |||||
70×35 | 3.23 | 4.21 | 5.17 | 6.08 | |||||
80×40 | 3.71 | 4.84 | 5.96 | 7.03 | |||||
90×45 | 4.25 | 5.55 | 6.83 | 8.05 | |||||
100×50 | 4.73 | 6.18 | 7.62 | 8.98 | 10.3 | 11.7 | 13.0 | 41.2 | |
120×60 | 9.20 | 10.9 | 12.6 | 14.2 | |||||
130×65 | 10.1 | 11.9 | 13.8 | 15.5 | 17.3 | 19.1 | |||
140×70 | 12.9 | 14.9 | 16.8 | 18.8 | 20.7 | ||||
150×75 | 13.9 | 16.0 | 18.1 | 20.2 | 22.2 | 26.3 | |||
160×80 | 14.8 | 17.1 | 19.3 | 21.6 | 23.8 | 28.1 | |||
180×90 | 16.7 | 19.4 | 22.0 | 24.5 | 27.0 | 32.0 | |||
200×100 | 18.6 | 21.6 | 24.5 | 27.4 | 30.2 | 35.8 |
Item | Stainless steel channel steel |
Product Name | 304 Stainless Steel U Channel Manufacturer |
Place of Origin | Shandong,China |
Brand Name | Kuaima |
Material | 304 |
Grade | 300 series |
Size | According to customer needs |
Tolerance | ±1% |
MOQ | Negotiable |
Application | Building Structures, Vehicle Manufacturing, Steel Frame Structures and other industrial structures. |
Standard | ASTM,AISI,GB,DIN,JIS,EN,etc. |
Certification | ISO,CE,etc. |
Processing Service | Bending, Welding, Punching, Cutting, Moulding |
Payment terms | L/C,T/T,D/P,etc.(According to customer needs) |
Price Term | CIF,CFR,FOB,EXW,etc. |
