Product Description

Stainless Steel U Channel

Stainless steel U channel has a fluted cross-sectional shape and are used in building structures, vehicle manufacturing and other industrial structures.

PRODUCT DESCRIPTION

Stainless Steel U Channel

Stainless Steel U Channel

Stainless steel U channel is a material that is often encountered in various sheet metal processing parts. It is often used for back wall decoration, door cover trim, door cover trim and so on. Its shape is very simple, it is a U-shaped. Stainless steel U-channel has a variety of colors, such as titanium, rose gold, black titanium and so on. These colors are processed through the titanium plating process.

The main advantages of stainless steel U channel are: reasonable structure, simple production process, and easy to use safety.

Stainless steel channel is the cross-sectional shape of the groove-shaped long steel. The same as I-beam, stainless steel channel steel is also divided into two types of ordinary channel steel and light channel steel, model and specifications are also expressed in terms of waist height (h) × leg width (b) × waist thickness (d) of millimeters, such as 120 × 53 × 5 channel steel, that is, the waist height of 120mm, round steel, need to add a, b, c, etc. to the right of the model to distinguish. Usually, stainless steel channel steel to the waist height of the number of centimeters to indicate its model, such as the above channel steel called 12 # channel steel. The specification range of channel steel is 5-40#. Including and sign and other requirements in accordance with GB2101-80 regulations.

Classification:

  1. (1) Hot rolled stainless steel ordinary channel steel main use: ordinary channel steel is mainly used in building structures, vehicle manufacturing and other industrial structures, often used in conjunction with I-beams.
  2. (2) Hot-rolled stainless steel light channel (YB164-63) hot-rolled light channel is a kind of steel with wide leg and thin wall, which has better economic effect than ordinary hot-rolled channel. Its specifications range from 5-40 #. 1966 smelting standard specifications range from 10-40 #. Main uses: construction and steel frame structure and other uses.

Stainless steel production of commonly used stainless steel channel material: 201, 202, 301, 304, 321, 316, 316L, special materials can generally be customized.

Specification

Size(mm)

H×B

Thickness (mm)

3

4

5

6

7

8

9

10

12

40×20

1.79

50×25

2.27

60×30

2.74

3.56

4.37

5.12

70×35

3.23

4.21

5.17

6.08

80×40

3.71

4.84

5.96

7.03

90×45

4.25

5.55

6.83

8.05

100×50

4.73

6.18

7.62

8.98

10.3

11.7

13.0

41.2

120×60

9.20

10.9

12.6

14.2

130×65

10.1

11.9

13.8

15.5

17.3

19.1

140×70

12.9

14.9

16.8

18.8

20.7

150×75

13.9

16.0

18.1

20.2

22.2

26.3

160×80

14.8

17.1

19.3

21.6

23.8

28.1

180×90

16.7

19.4

22.0

24.5

27.0

32.0

200×100

18.6

21.6

24.5

27.4

30.2

35.8

ItemStainless steel channel steel
Product NameStainless Steel U Channel Manufacturer
Place of OriginShandong,China
Brand NameKuaima
Material200 series,300 series,400 series,etc.
Grade200 series,300 series,400 series,etc.
SizeAccording to customer needs
Tolerance±1%
MOQNegotiable
ApplicationBuilding Structures, Vehicle Manufacturing, Steel Frame Structures and other industrial structures.
StandardASTM,AISI,GB,DIN,JIS,EN,etc.
CertificationISO,CE,etc.
Processing ServiceBending, Welding, Punching, Cutting, Moulding
Payment termsL/C,T/T,D/P,etc.(According to customer needs)
Price TermCIF,CFR,FOB,EXW,etc.

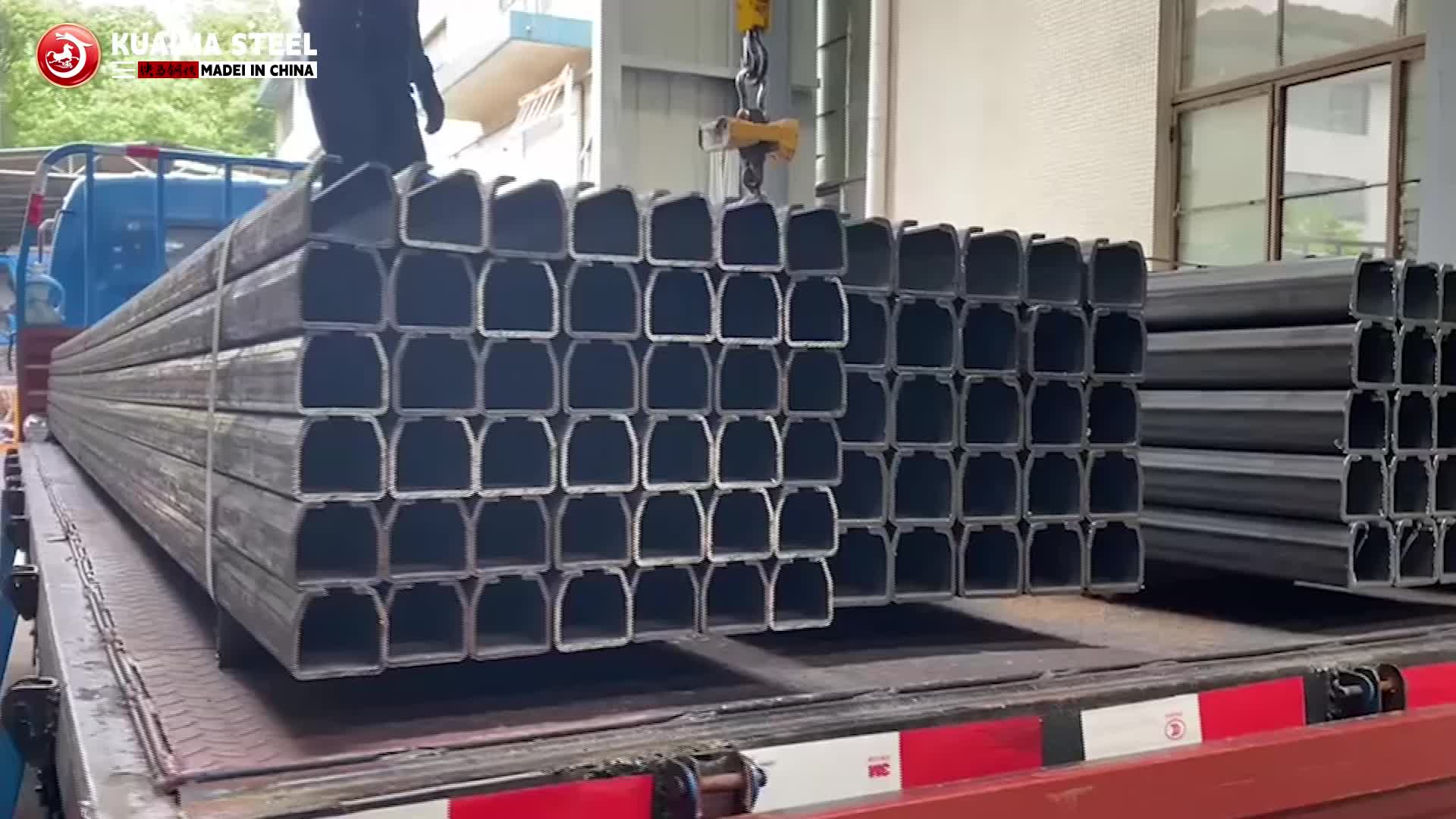

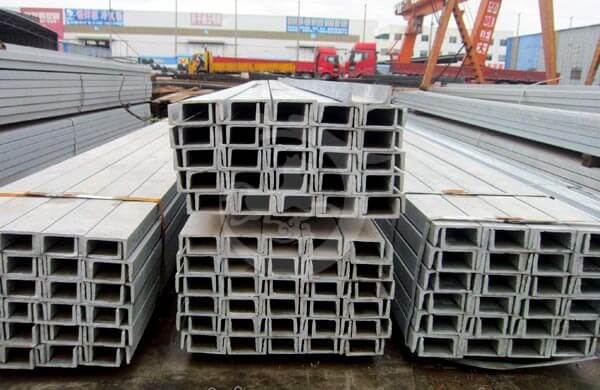

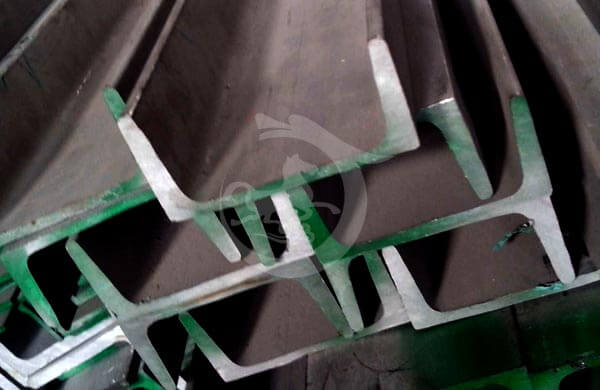

Product Show

1

Certificates

2

Frequently Asked Questions

FAQ

  1. Q:What is your terms of payment?
    A:We usually accept T/T in advance, L/C for large sum.If you prefer other payments terms, please discuss.
  2. Q:What is the terms of delivery?
    A:EXW, FOB, CIF,etc.
  3. Q:What is the terms of packing?
    A:Generally, we pack our goods in bundles or coils with rods or belts, we could also pack the goods as the customers' requirements.
  4. Q:What is your delivery time?
    A:For products in stock, we can ship it within 7 days after receiving the deposit.For custom order, production time is 15-30
    workdays after received the deposit.
  5. Q:Could you produce according to the samples?
    A:Yes, we could customer-made by your samples or technique drawings, we could build the mold and fixtures.
  6. Q:Can I place an sample order and what is your MOQ if I accept your quality?
    A:Yes, we can send you samples but you may pay the express fees, our MOQ is 1 ton.
  7. Q:How could you guarantee your products?
    A:We accept and support the third-party inspection.We also could issue the warranty to customer to guarantee the quality.
  8. Q:Where is the port of shipment?
    A:Tianjin,Xiamen,Ningbo or Shanghai Port.
  9. Q:How can I get the price of needed product?
    A:It's the best way if you can send us the material, size and surface, so we can produce for u to check the quality.If you
    still have any confusion, just contact us, we would like to be helpful.
  10. Q:What other products do you make?
    A: Stainless Steel Products, Galvanized  Steel Products, Color Coated Products, Alloy Steel Products, etc.
