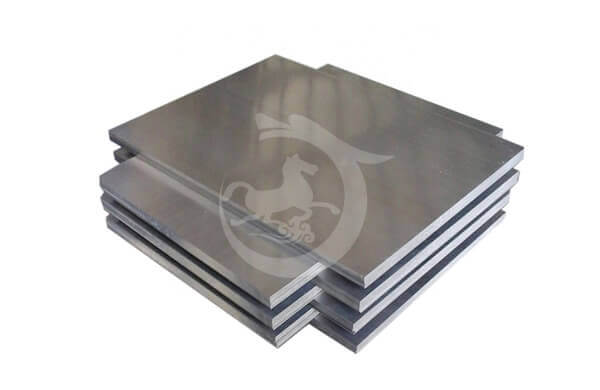

stainless steel plate 310 texture

GET QUOTATION
板30
板29
板21
板25

Product introduction

板30

Product characteristics

310 stainless steel is austenitic chrome-nickel stainless steel with excellent oxidation resistance, corrosion resistance, because of the higher percentage of chromium and nickel, 310S has much better creep strength, can continue operation at high temperatures, has good high temperature resistance.

310S corresponds to the domestic brand 0Cr25Ni20,

310 stainless steel tube, 310S stainless steel tube specification: ф 1.0mm or more

Material :304, 304L, 321, 316, 316L, 310S, 630, 1Cr13, 2Cr13, 3Cr13, 1Cr17Ni2, duplex steel, antibacterial steel and other materials.

Quality management :ISO9001:2000 quality management system certification, production license, etc.

Chemical Composition:

  1. C :≤0.25%
  2. Si :≤1.50%
  3. Mn :≤2.00%
  4. P :≤0.045%
  5. S :≤0.0.03%
  6. Cr :24.0-26.0%
  7. Ni :19.0-22.0%

Mechanical properties:

  1. Hardness (HB) : ≤187
  2. Tensile strength (б B)(Mpa) :≥520
  3. Yield strength (σ S)(Mpa) :≥205
  4. Elongation (δ)% :≥40
  5. Area reduction (ψ)% :≥50

310 High Temperature Oxidation Resistance:

Stainless steel through the local oxidation of chromium to make it oxidation resistance, in the process of local oxidation of chromium, can form a very stable oxide (Cr2O3 chromium oxide). As long as the chromium content of the metal is sufficient, a continuous layer of chrome oxide green can be formed on the metal surface to prevent the formation of other oxides and protect the metal. The oxidation resistance of austenitic stainless steel can be calculated by the chromium content. High temperature resistant alloys contain at least 20% chromium (* by weight). Substituting a nickel component for an iron component also usually provides alloy performance at high temperatures. 309/309s and 310/310s are high alloy materials, so they have good oxidation resistance.

310 Heat Treatment/Annealing:

The main reason for annealing these alloys is to produce a recrystallized fine structure to achieve uniform grain size and to decompose harmful chromium carbide precipitates.

Stainless steel plate:

Main material: SUS316L, 316, 314, 310S, 309S, 304, 301, 202, 201 and other imported specifications of stainless steel plate (volume) material.

The main varieties are: 301 stainless steel plate, 304 stainless steel coil, 321 stainless steel coil plate, 316 stainless steel plate, 304 stainless steel plate and some other stainless steel plate surface: BA surface, 2B surface, NO.1 (white), 2D surface, NO.4 (grinding), HL(drawing), 8K surface quality, good brightness.

Gauge: thickness 0.02mm ~ 40mm; Width 3.5mm to 1550mm.

Applications:

petroleum, electronics, chemical, pharmaceutical, textile, food, machinery, construction, nuclear power, aerospace, military and other industries.

Width 1000mm/1219mm/1240mm/1500mm/2000mm or as customer's requirements
Thickness Cold rolled:0.1~3.0mm
NaN Hot rolled:3mm~100mm
Length 100mm to 12000mm or as customer's request
Surface N0.1, N0.4, 2D, 2B, HL, BA, 6K, 8K, Mirror,etc
Material 201,202,301,302,303,304,304L,304N1,309S,310S,316,316L,316Ti,316N,317,317L,321,409L,410,420,430,904,904L,etc
Grade 200/300/400/500/600/700/800/900 series/duplex stainless steel
Standards AISI ASTM JIS SUS DIN GB
Certifications ISO 9001 and SGS
Packing Industry standard packaging or according to client's requirement
Place of origin Jiangsu China(mainland)
Payment T/T,L/C,Western Union,Paypal,Apple Pay,Google Pay,D/A,D/P,MoneyGram
Delivery time Up to order quantity

Product Name Unnamed: 1 Stainless Steel Plate
Material(DIN) NaN 1.4301/1.4306/1.4541/1.4401/1.4404/1.4571/1.4539/1.4410/1.4833/1.4845
Surface NaN BA/2B/NO.1/NO.3/NO.4/8K/HL/2D/1D
Edge NaN Plain Mill
Standard NaN ASTM DIN GB JIS EN AISI
Grade NaN 201/304/304L/321/316/316L/310S/904L/309S/316Ti/317L/2205/2507, etc.

kuaima00003


Company Profile

We are a professional factory engaged in production, sale and service.Our main product is stainless steel product covers steel plate , round bar, steel pipe , angle bar, steel pile ,H beam ,I beam, angle, Channel flat steel etc. Our main market distributes in North America, South America, Africa, Southeast Asia as well as Oceania.Up to now, we have established long-term and win-win partnership with purchasers around the world.Sincerely wish to build a long and regular business with you forever.

H4de05876cbb2411ea6f135ad72dc7c99R_副本

FAQ

Q1: Are you a factory?

A1: We are a factory and export over 10 years, also a professional manufacturer.

Q2: Can I get some samples?

]A2: Can provide small samples for free. Customized sample takes 5-7 days.

Q3: How about the delivery time?

A3: Small trial order takes 5-7 days. Container order need 15-20 days.

Q4: Do you have any protection when packing?

A4: Cover with PE film , wrap with waterproof paper, pack with wooden plate,belt by steel strip, fasten on pallet.

Q5: How about your quality and how do you guarantee the quality?

A5: All products we supply is primary as you need, Our company is certificated to ISO9001: 2008, and every product will be tested for 4-5 processes. We welcome customers or the third party inspection agencies to come to our factory for inspection.

Q6: How about the after service?

A6: Free of charge for one year's warranty.

Q7: What is your terms of payment ?

A7: Usually 30% deposit by TT in advance and balance against copy pf BL or L/C at sight.

Grade 300 Series
Standard JIS
Length 100mm-12000mm
Width 100mm-2000mm
Type Plate
Application Industry, architecture, decorate
Tolerance ±1%
Processing Service Bending, Welding, Decoiling, Punching, Cutting, Polishing
Steel Grade 316L, 316, 304, 304L
Surface Finish 2B
Delivery Time 8-14 days
Product name Stainless Steel Sheet Plate
Technique Cold Rolled Hot Rolled
Surface BA/2B/NO.1/NO.3/NO.4/8K/HL/2D/1D
Payment Term L/C T/T (30% Deposit)
Price Term CIF CFR FOB EX-WORK
Certiifcate IOS 9001
Sample Offer free-sample
Certification RoHS
Packaging Details As your requirement.
