Copper wire has several important properties that make it a “natural” for electrical wiring. More than any other non-precious metal, it is the best conductor of electricity, packing more power into a given diameter of wire than any substitute material. Copper wire is also easier to bend. With copper wire, connections are easy and sure. And, because it has a high melting point, it can take surprisingly heavy overloads or current surges without damage or danger.

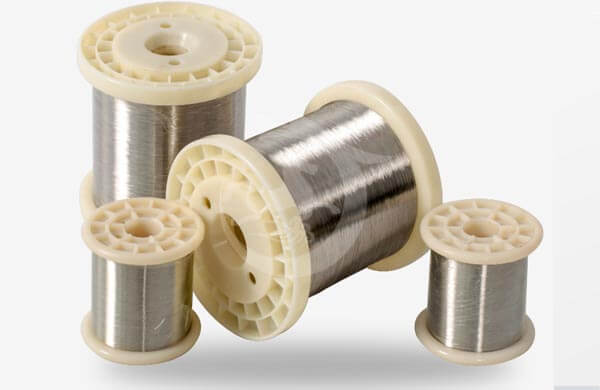

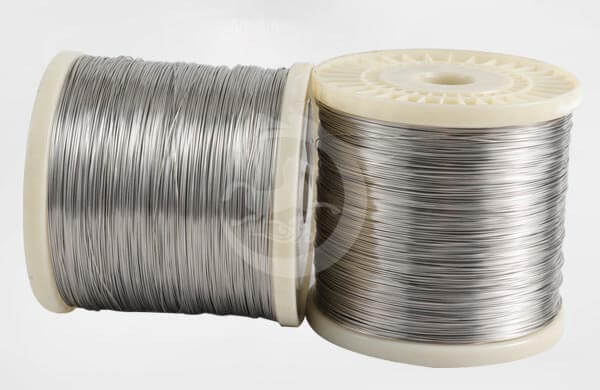

1.50 micro-inch (1.27 micron) nickel-plated copper wire is used to make insulated wire for operating temperatures up to 260ºC.
2.ASTM B 355 specifies a 50 micro-inch (1.27 micron) plated continuous nickel thickness.
3.For severe high temperature applications, the operating temperature can be increased from 260ºC to 1100ºC with an increase in nickel plating thickness from 2% to 27% by weight.
4.For crimp connections in high temperature resistant cables, nickel-plated copper wire is preferred over silver-plated copper wire due to cost effectiveness.
5.Nickel-plated copper wire will have very little atmospheric effect on silver-plated and tin-plated copper wire. It has better resistance to corrosive atmospheres.
6.Nickel-plated copper wire is used for high-temperature operation, which would otherwise cause silver-plated copper wire to lose its luster.
7.Nickel-plated copper wire is harder than silver-plated and tin-plated copper wire.
| Description | Nickel plated copper wire |
|---|---|
| Standards | ASTM, AISI, JIS, SUS, EN, DIN, BS, GB |
| Related Material | T2, T3, TP1, TP2, TU1, TU2,H96, H80, H90, H70, H65, H68,nH62,H59, HP59-1, HMn58-2, HSn62-1, HMn55-3-1, HMn57-3-1,nHAl60-1-1,HAl67-2.5, HAl66-6-3.2, HNi65-5 |
| Specifications | Thick:0.1-8mm,Width:2-2500mm |
| Price Term | EX-Work, FOB, CFR, CIF |
| Payment Term | T/T, L/C, Western Union |
| Delivery Time | According to order' s quantity |
| Package | Export standard package: bundled wooden box or be required;The inner size of container is below:(1)20 foot GP: 5.8m(length)x 2.13m(width)x 2.18m(high)nabout 24-26 CBM(2)40 foot GP: 11.8m(length)x 2.13m(width)x 2.72m(high)nabout 68 CBMWe will packing as the factory, and reach the stander of export.Or as the customer request. In addition,We will make the products with good surface protection. |
| Application | Has a good thermal conductivity, processability, ductility, corrosion resistance and weatherability.nnCan be used in electrical appliances, construction and chemical industry, especially terminal PCB, wire covered with copper belt, air cushion, bus terminalnCan be in auto radiator pipe, snap fastener, camera, radiator, etc.nCan draw to shallow stretch nameplate, badges |
| Attention | As a specialized manufacturer and exporter of thenabove products in china, this collection is the most popularnstyle in our factory, selling fast!We can also produce the stainless steel sheet, bar, pipe,ntube etc.We will give you the bottom price and the fastest speednand then give you the satisfied service for you. |
| Wire | Cu | Others |
|---|---|---|
| Cu core | 99.90 min | 0.10 max |
| Nickel layer | High purity Nickel | |
| Wire Type | Tensile strength (N/mm²) | Elongation % at L0=100 mm | |
|---|---|---|---|
| Min | Max | ||
| Annealed (soft) | 200 | 300 | ≥ 20 |
| As drawn | 350 | 500 | ≤ 5 |
