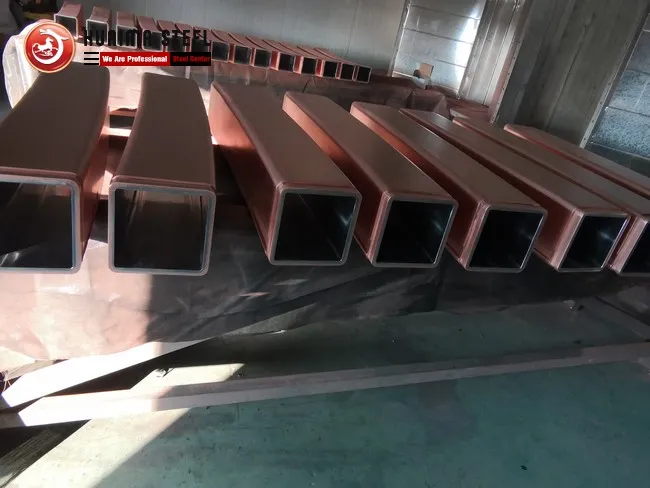

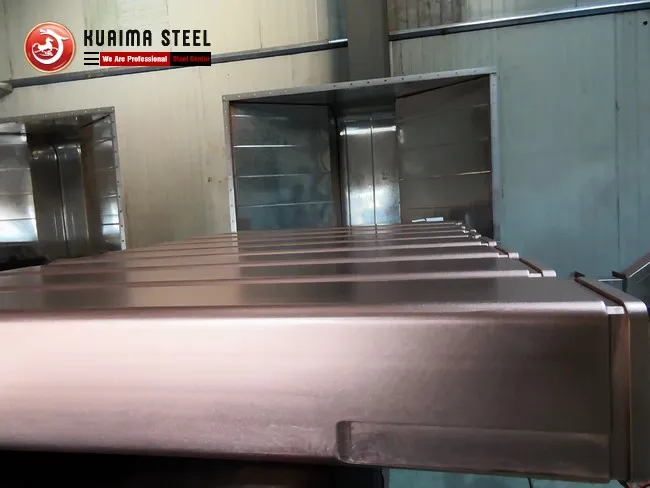

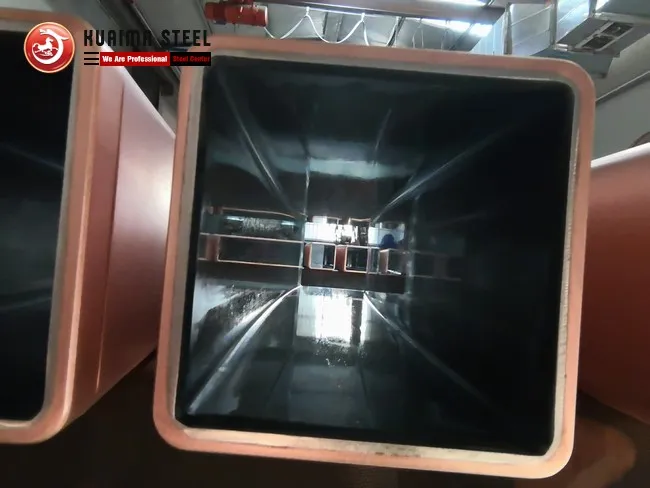

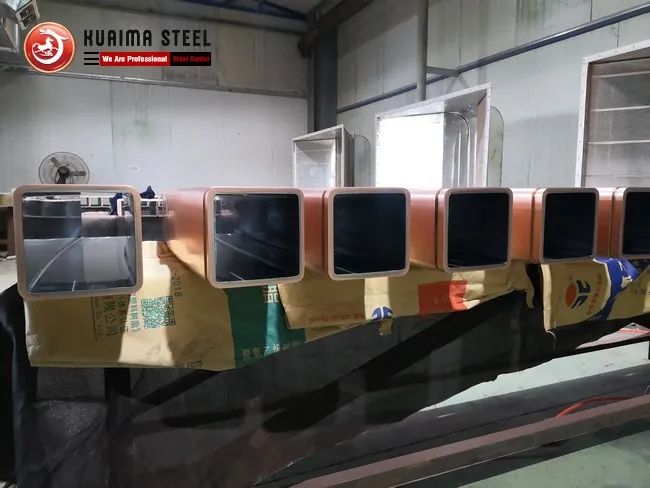

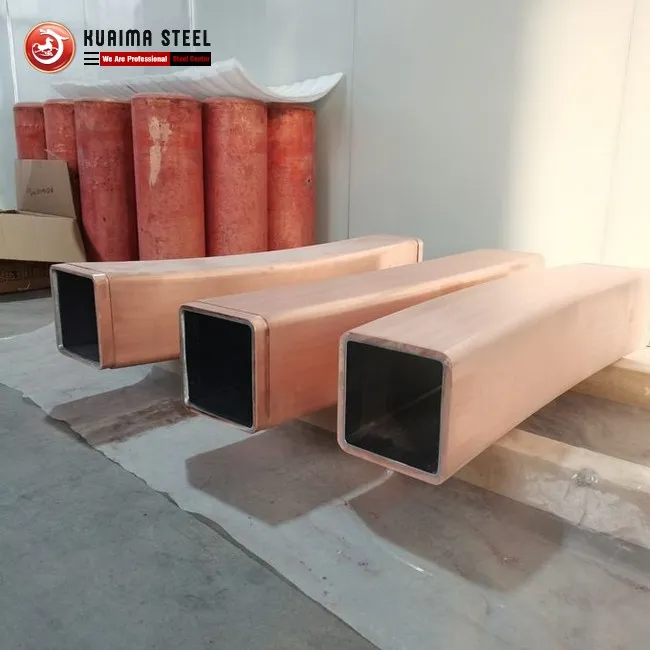

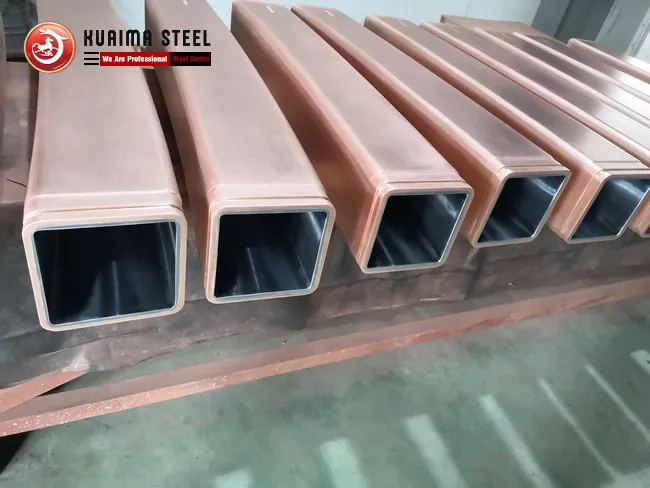

Copper mould tubes is an essential part that used any construction. It is created with a good quality of raw materials that produce reliable sources. However, we are providing copper mould tube products based on industry norms and high standards. You might order applications according to your industrial needs.
Copper Mould Tubes are the most essential part of a Continuous Casting Machine
The high-quality copper mould tube has a good cooling effect, ensuring that when the casting billet exits the mold, a billet shell with uniform thickness and sufficient strength is formed to resist the static pressure of the steel liquid and the billet pulling force, and no accidents such as bursting or drawing leakage occur. Guarantee the smooth running of continuous casting. You might order copper mold tubes according to your industrial needs.
Item | Temp. | Unit | Material | ||
CuDHP | CuAg0.1 | CuCrZr | |||
Chemical Composition | |||||
| P0.015-0.040 | Ag0.08-0.12 | Cr0.30-1.20 | ||
| — | P0.04-0.012 | Zr0.03-0.30 | ||
Physical Properties | |||||
Electrical conductivity | 20 | %IACS | 83 | 95 | 80 |
Thermal conductivity | 20 | W/(m.k) | 340 | 372 | 330 |
Coefficient of thermal expansion | 20-300 | 10’-6/K | 17.1 | 17.1 | 17.2 |
Recrystallisation temperature | — | ℃ | 345 | 360 | 690 |
Modulus of elasticity | 20 | 10’3MPa | 120 | 123 | 126 |
Melting point | — | ℃ | 1083 | 1083 | 1078 |
Specific gravity | — | g/cm3 | 8.9 | 8.9 | 8.9 |
Mechanical Properties | |||||
Ultimate tensile strength | 20 | Mpa | 240-310 | 240-310 | 375-445 |
Ultimate tensile strength | 100 | Mpa | 190-270 | 230-270 | 365-425 |
Ultimate tensile strength | 200 | Mpa | 140-190 | 205-240 | 365-410 |
Ultimate tensile strength | 300 | Mpa | — | 175-210 | 335-375 |
Ultimate tensile strength | 400 | Mpa | — | 145-160 | 315-350 |
0.2 Yield point strength(Rp0.2) | 20 | Mpa | 190-250 | 200-225 | 280-355 |
0.2 Yield point strength(Rp0.2) | 100 | Mpa | 185-260 | 195-240 | 270-345 |
0.2 Yield point strength(Rp0.2) | 200 | Mpa | — | 180-225 | 260-330 |
0.2 Yield point strength(Rp0.2) | 300 | Mpa | — | 165-215 | 250-320 |
0.2 Yield point strength(Rp0.2) | 400 | Mpa | — | 130-145 | 240-290 |
Elongation（A5） | 20 | % | 25_10 | 16_10 | 20-13 |
Hardness | 20 | HB | 80-95 | 110-125 | 115-130 |
