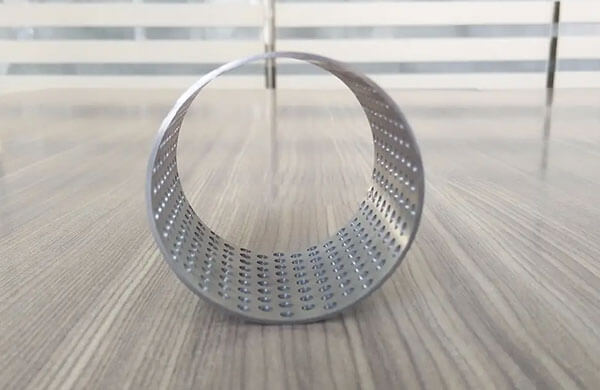

perforated titanium tube

Titanium tubes are the ninth most abundant element in the earth’s crust and the seventh most abundant metal. Its low density, slightly over half that of steel, and its high strength combination is the reason for the metals growing preference in both military and commercial aircraft. The alloying of titanium tubing with elements such as aluminum and vanadium increase the strength of titanium while at the same time retains its weight advantage over steel.

Product Details

perforated titanium tube advantages

It has an oxide layer that serves as protection against corrosion. Titanium is 40% lighter than steel and 60% heavier than aluminum. The light weight of titanium makes it an ideal metal for structural applications.

Durability Our products can be tailored to suit your specific requirements. As a transition metal, titanium is renowned for its high strength. Ti-Tek supply the titanium tubes for the motorsport industry where strength, power and performance are of utmost importance.

Corrosion resistance The titanium tubes are renowned for their ability to resist corrosion and other impacts. Our titanium tubes are manufactured to suit highly corrosive environments, allowing you to maintain a high-quality appearance.

Titanium is resistant to corrosion meaning that it suits various outdoor applications and can ultimately prevent rust.

Chemical resistance Titanium tubes are not only able to resist corrosion; they’re designed to withstand chemical components too. Here at Ti-Tek, we supply the titanium tubes in an assortment of grades, ranging from Grade 1 to 12.

The titanium tubes we provide are designed to perform effectively, suiting various applications. Incorporating a flexible design and kink resistance; it’s no surprise our titanium tubes are so popular. Choosing one of our titanium tubes will provide you with the peace of mind that your products are protected from chemicals and acids.

perforated titanium tube Specification

Item name

l Titanium and titanium alloy tube/pipe

Standard

l ASTM B337, ASTM B338, ASTM B861, ASTM B862

Grade

l Gr1, Gr2, Gr5, Gr9, Gr11, Gr12, Gr16, Gr17

Dimension

l OD*Thk*L (10-114)*(0.4-10)*(100-15000)mm

Manufacturing method

l Cold rolled

Condition

l Annealed(M)

Feature

l Low Density.

l Excellent Corrosion Resistance in acid and alkali salt.

l High heat transfer capability.

l Good biocompatibility.

l Low elasticity module.

l Low thermal expansion coefficient.

l Superior strength-to-density ratios.

l Good strength at low and high temperature.



Certificate

l ISO9001:2008, EN9100:2009

Advantages

l Fist-class technology and the rigorous work attitude.

l We have the most professional team to solve all kinds of the problems you have during the manufacturing process and provide your pressure vessel drawing for free if you need.

l Low purchasing cost for repetitive orders in the long-run as our performance/price ratio is higher.

l Never be back order.

l Excellent customer service policies on repair/exchange/refund.

l Serving both domestic and overseas customers with various .

Payment

l T/T,Western union,L/C

Why Us

l Cost control-manufacturing and exporting by ourselves.

l Competitive price-without middleman.

l Quality guarantee SGS,Mill Test Certificate,the third party test as request.

l On time delivery.

perforated titanium tube chemical composition

CHEMICAL, PHYSICAL AND MECHANICAL PROPERTIES

CHEMICAL COMPOSITION

ASTM Grade

(Max. Values)

1

2

5

7

9

12

23

N, Nitrogen

0,03

0,03

0,05

0,03

0,02

0,03

0,03

C, Carbon

0,1

0,1

0,1

0,1

0,05

0,08

0,08

H, Hydrogen

0,015

0,015

0,0125

0,015

0,013

0,015

0,0125

Fe, Iron

0,2

0,3

0,4

0,3

0,25

0,3

0,25

O, Oxygen

0,18

0,25

0,20

0,25

0,12

0,25

0.13

Pd, Palladium







0,12-0,25







Al, Aluminum





5,5-6,75



2,5-3,5



5,5-6.5

Mo, Molybdenum











0,2-0,4



V, Vanadium





3,5-4,5



2,0-3,0



3,5-4,5

Ni, Nickel











0,6-0,9



Ti, Titanium

Bal.

Bal.

Bal.

Bal.

Bal.

Bal.

Bal.

perforated titanium tube mechanical properties

MECHANICAL PROPERTIES











Tensile strength, min (Mpa)

240,00

345,00

895,00

345,00

620,00

483,00

828,00

Yield strength, 0,2% Offset, min (Mpa)

170,00

275,00

825,00

275,00

483,00

345,00

759,00

Elongation (in 4D, min, %)

24,00

20,00

10,00

20,00

15,00

18,00

10,00

Reduction of Area, min, %

30,00

30,00

25,00

30,00

25,00

25,00

15,00

Hardness * Interpolated

Rb70

Rb80

Rc36

Rb80

Rc28

Rc17*
