mirror stainless steel pipe
custom stainless steel pipe
01 / 03

custom stainless steel pipe

304 stainless steel pipe is a grade of stainless steel produced in accordance with the ASTM standard. 304 stainless steel pipe is equivalent to 0Cr19Ni9 (0Cr18Ni9) stainless steel pipe in China. 304 contains 19% chromium and 9% nickel. The German line standard: DIN2462.

Product Details

custom stainless steel pipe

304 stainless steel pipe is a grade of stainless steel produced in accordance with the ASTM standard. 304 stainless steel pipe is equivalent to 0Cr19Ni9 (0Cr18Ni9) stainless steel pipe in China. 304 contains 19% chromium and 9% nickel. The German line standard: DIN2462.

304 stainless steel pipe as stainless heat-resistant steel used most widely, food equipment, general chemical equipment, atomic energy industry equipment.

304 stainless steel pipe is a general-purpose stainless steel pipe, which is widely used to make equipment and machine parts requiring good overall performance (corrosion resistance and formability).

304 stainless steel pipe is the most widely used stainless steel, heat-resistant steel. It is used for food production equipment, Xitong chemical equipment, nuclear energy, etc.  304 stainless steel pipe chemical composition Specifications C Si Mn P S Cr Ni (nickel) Mo SUS304 ≤0.08 ≤1.00 ≤2.00 ≤0.05 ≤0.03 18.00-20.00 8.25~10.50 - 304 stainless steel is a general-purpose stainless steel material, rust resistance than the 200 series of stainless steel materials. 304 stainless steel has excellent stainless corrosion resistance and good resistance to intergranular corrosion.

304 stainless steel material concentration ≤ 65% of the boiling temperature below the nitric acid, has a very strong resistance to corrosion. To alkali solutions and most organic and inorganic acids also have good corrosion resistance. In the air or chemically corrosive media to resist corrosion of a high-alloy steel, stainless steel is a beautiful surface and good corrosion resistance, without the need for surface treatment such as color plating, and play the inherent surface properties of stainless steel, used in many aspects of a kind of steel, usually called stainless steel. The representative performance of 13 chromium steel, 18-8 chromium-nickel steel and other high-alloy steel.

From the metallographic point of view, because the stainless steel contains chromium and the surface of the formation of a very thin chromium film, this film separates the invasion of oxygen with the steel to play a role in corrosion resistance. In order to maintain the inherent corrosion resistance of stainless steel, the steel must contain more than 12% chromium.

304 stainless steel pipe size and allowable deviation

Stainless steel capillary tube has good wear resistance, corrosion resistance, tensile strength, flexibility, water resistance, high temperature resistance and excellent electromagnetic shielding properties.

As raw materials, stainless steel capillary tubes/tubes are widely used in medical, petroleum, aerospace, medical equipment, air conditioning, chemical, electronics, accessories, kitchen appliances, food machinery, power generation, pharmaceutical, water supply equipment, boilers and other fields.

Processing Service:

Support processing of special shaped capillary tubes.

Processing range: fine close tube, chamfering, tube expansion, tube shrinkage, side hole, sealing (round or flat), coiled tube, threading, bending, etc. Finned tube, coiled tube, pierced tube

Packing: Wrapping film, plastic bag, carton

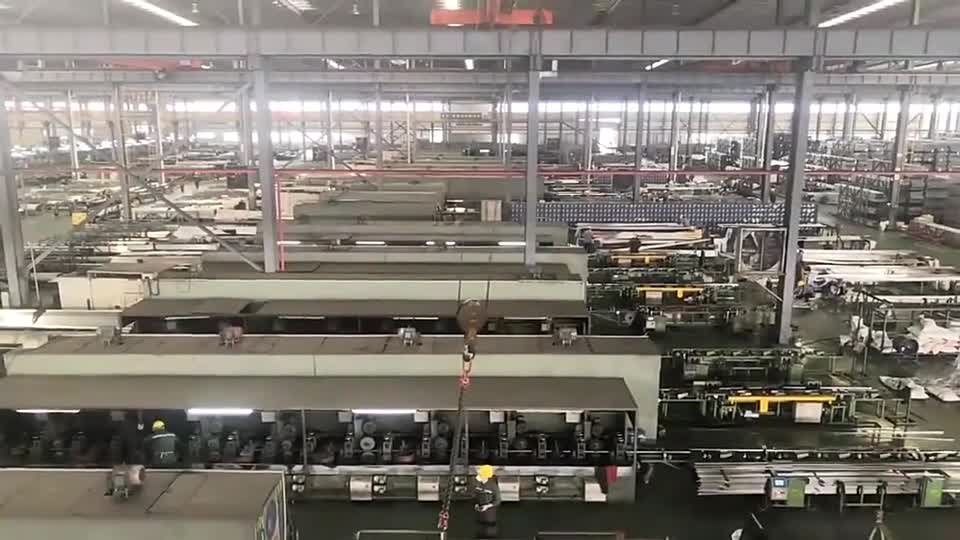

Manufacturing process:

Stainless steel welded pipe production process.

Raw materials - sludge - welded tubes - trimming - polishing - inspection (spray printing) - packaging - delivery (warehouse) (decorative welded tubes) Raw material - Slitting - Welded pipe Heat treatment - Correction - Straightening - End trimming - Pickling - Hydrostatic test - Inspection (printing) - Packaging - Shipping (warehouse) (Welded pipe for industrial pipeline)


Product Introduction of custom stainless steel pipe

Product NameStainless steel pipe

Texture Of Material

210 202 301 304 304L 316 316L 321 309S 310S 904L 410 420 430

Thickness

0.03-6mm
Length2000 mm, 2500 mm, 3000 mm, 6000 mm or as required by the customer

Surface Treatment

NO.1,2B,BA,NO.4(Satin),Hairline,8K(mirror)
StandardAISI,ASTM,DIN,JIS,GB,JIS,SUS,EN
Application

Architecture, corrugated cardboard roof, electrical, household appliances, automobile industry, transportation packaging,machining, interior,decoration, medical

Processing Services

Uncoiling, Cutting, Punching, Welding, Bending

MOQ

1 T, please consult for details

Sample And Customize

Support

Delivery Time

15-25 days

Shipping Method

sea freight,land transport,air transport,express delivery

Package

standard packaging

Payment Method

Support advance payment

Place of Origin

Shandong China

Brand

KuaiMa

Production Capacity

1000000 tons/year

Quality

Top Quality


chemical composition of custom stainless steel pipe

Chemical Material Composition of SS 304 seamless pipes
Grade Mn C P Si Cr S Ni Mo N
Stainless Steel 304 Seamless Pipe minimum 18 8
maximum 2 0.08 0.045 0.75 20 0.03 10.5 0.1

mechanical property of custom stainless steel pipe

Yield Strength of asme sa312 grade 304 pipes
Grade Strength of Yield 0.2% Proof (MPa) minimum Elongation (% in 50mm) minimum Strength of Tensile (MPa) minimum Pipes Hardness
Brinell (HB) maximum Rockwell B (HR B) maximum
Stainless Steel 304 Seamless Pipe 205 40 515 201 92
