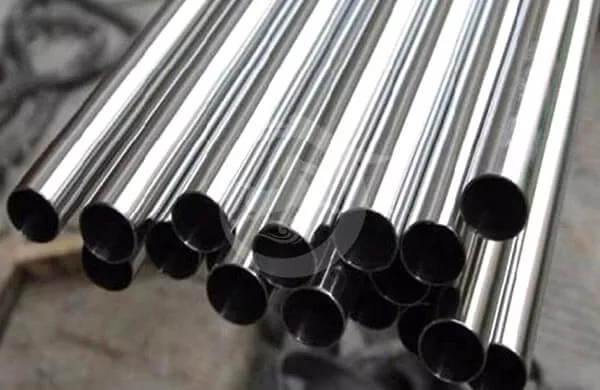

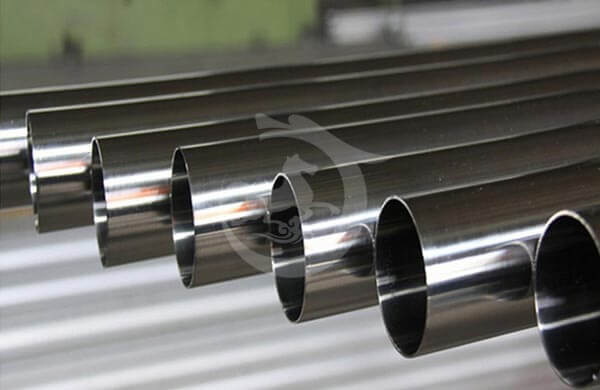

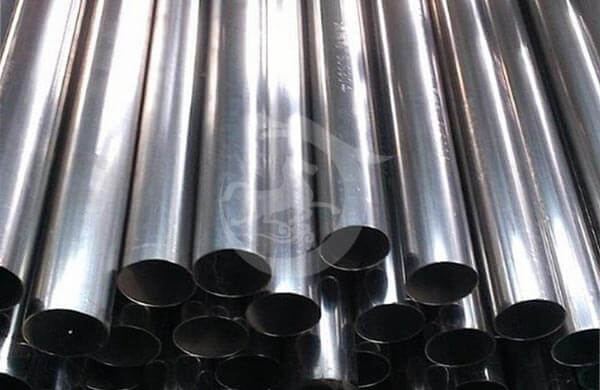

Welded Stainless Steel Tube ASTM A269 Manufacturer

GET QUOTATION
53
51
50
52

Product introduction

53

Product characteristics

什么是 ASTM A269 焊接不锈钢管?

ASTM A269 一般用途无缝和焊接奥氏体不锈钢管的标准规范。

焊接不锈钢管精度高,壁厚均匀,管材内部外观亮度高(钢管表面亮度由钢板表面等级决定),可任意定尺寸。1930年代以来,随着优质带钢连轧生产的快速发展和焊接检测技术的进步,焊缝质量不断提高,焊接钢管的品种和规格不断增加,在越来越多的领域(特别是换热设备用管材、装饰管、中低压流体管等)代替无缝钢管。

因此,焊接不锈钢管在高精度、中低压流体应用中体现了其经济性和美观性。


焊接不锈钢管的分类:

按焊缝形式分为直缝焊管和螺旋焊管。按用途分为普通焊管、换热器管、冷凝器管、镀锌焊管、吹氧焊管、电线套管、公制焊管、托辊管、深井泵管、汽车管、变压器管、电焊薄壁管、电焊异形管、螺旋焊管。

不锈钢管材技术数据表:

标准

GB,AISI,ASTM,DIN,EN,JIS
ASTM A240/ASME SA-240、ASTM A276、ASTM A182/ASME SA-182、ASTM A312/ASMES A312
ASTM B625/ASME B625、ASTM B673/ASME B673

Available Grades

Stainless steel 301 / 302 / 303 / 304 / 304L / 310S / 316L / 316Ti / 316LN / 317L / 904L / 2205 / 2507 / 321 / 32760 / 253MA / 254SMo / 410 / 420 / 430 / Custom465 / XM-19 / S31803 / S32750 / S32205 / F50 / F60 / F55 / F60 / F61 / F65.
Nitronic 30 / Nitronic 32 / Nitronic 33 / Nitronic 40 / Nitronic 50 / Nitronic 60  etc.

Monel 400 / Monel K-500

Inconel 600 / Inconel 601 / Inconel 625 / Inconel 617 / Inconel 690 / Inconel 718 / Inconel X-750 / Inconel 713C / Inconel 713LC

Incoloy A-286 / Incoloy 800 / Incoloy 800H / Incoloy 800HT

Incoloy 825 / Incoloy 901 / Incoloy 925 / Incoloy 926

Nimonic 75 / Nimonic 80A / Nimonic 90 / Nimonic 105 / Nimonic C263 / L-605

Hastelloy B / Hastelloy B-2 / Hastelloy B-3 / Hastelloy C / Hastelloy C-276 / Hastelloy C-22

Hastelloy C-4 / Hastelloy C-2000 / Hastelloy G-35 / Hastelloy X / Hastelloy N

PH stainless steel 15-5PH / 17-4PH / 17-7PH

Out diameter

Seamless Pipe 6MM - 1174MM or customized

Thickness

Seamless Pipe 1mm - 80mm or customized

Max Length

Seamless Pipe 12000mm or customized

Finish

2B, Pickling, Polished, Brushed, Sandblast, BA, EP

Packing

waterproof polybag, wooden box, end cap, wooden crame/pallet

Inspection

TUV,SGS,BV,ABS,LR and so on

Application

Chemical, Pharmaceutical & Bio-Medical, Petrochemical & Refinery, Environmental, Food Processing, Aviation, Chemical Fertilizer, Sewage Disposal, Desalination, Waste Incineration etc.

Processing Service

Machining : Turning / Milling / Planing / Drilling / Boring / Grinding / Gear Cutting / CNC Machining

Deformation processing :  Bending / Cutting / Rolling / Stamping

Welded

Forged

Delivery Time

7-40 days

Trade Term

FOB CIF CFR CIP DAP DDP EXW

Payment

T/T, L/C,D/A,D/P, Western Union,MoneyGram,According to customer requirements payments for offline orders.

Transportation

By air, by sea, by train, by truck

Sample

Free

Warranty

Trade assurance after sales service

Chemical Properties of Frequently-used Stainless Steel Material Grade:

UNS

ASTM

EN

JIS

C%

Mn%

P%

S%

Si%

Cr%

Ni%

Mo%

S20100

201

1.4372

SUS201

≤0.15

5.5-7.5

≤0.06

≤0.03

≤1.00

16.0-18.0

3.5-5.5

-

S20200

202

1.4373

SUS202

≤0.15

7.5-10.0

≤0.06

≤0.03

≤1.00

17.0-19.0

4.0-6.0

-

S30100

301

1.4319

SUS301

≤0.15

≤2.00

≤0.045

≤0.03

≤1.00

16.0-18.0

6.0-8.0

-

S30400

304

1.4301

SUS304

≤0.08

≤2.00

≤0.045

≤0.03

≤0.75

18.0-20.0

8.0-10.5

-

S30403

304L

1.4306

SUS304L

≤0.03

≤2.00

≤0.045

≤0.03

≤0.75

18.0-20.0

8.0-12.0

-

S30908

309S

1.4833

SUS309S

≤0.08

≤2.00

≤0.045

≤0.03

≤0.75

22.0-24.0

12.0-15.0

-

S31008

310S

1.4845

SUS310S

≤0.08

≤2.00

≤0.045

≤0.03

≤1.50

24.0-26.0

19.0-22.0

-

S31600

316

1.4401

SUS316

≤0.08

≤2.00

≤0.045

≤0.03

≤0.75

16.0-18.0

10.0-14.0

2.0-3.0

S31603

316L

1.4404

SUS316L

≤0.03

≤2.00

≤0.045

≤0.03

≤0.75

16.0-18.0

10.0-14.0

2.0-3.0

S31703

317L

1.4438

SUS317L

≤0.03

≤2.00

≤0.045

≤0.03

≤0.75

18.0-20.0

11.0-15.0

3.0-4.0

S32100

321

1.4541

SUS321

≤0.08

≤2.00

≤0.045

≤0.03

≤0.75

17.0-19.0

9.0-12.0

-

S34700

347

1.4550

SUS347

≤0.08

≤2.00

≤0.045

≤0.03

≤0.75

17.0-19.0

9.0-13.0

-

S40500

405

1.4002

SUS405

≤0.08

≤1.00

≤0.04

≤0.03

≤1.00

11.5-14.5

≤0.60

-

S40900

409

1.4512

SUS409

≤0.08

≤1.00

≤0.045

≤0.03

≤1.00

10.5-11.75

≤0.50

-

S43000

430

1.4016

SUS430

≤0.12

≤1.00

≤0.040

≤0.03

≤0.75

16.0-18.0

≤0.60

-

S43400

434

1.4113

SUS434

≤0.12

≤1.00

≤0.040

≤0.03

≤1.00

16.0-18.0

-

-

S44400

444

1.4521

SUS444L

≤0.025

≤1.00

≤0.045

≤0.03

≤1.00

17.5-19.5

≤1.00

-

S40300

403

-

SUS403

≤0.15

5.5-7.5

≤0.04

≤0.03

≤0.50

11.5-13.0

≤0.60

-

S410000

410

1.40006

SUS410

≤0.15

≤1.00

≤0.035

≤0.03

≤1.00

11.5-13.5

≤0.60

≤1.00

S42000

420

1.4021

SUS420J1

0.16~0.25

≤1.00

≤0.04

≤0.03

≤1.00

12.0-14.0

≤0.75

≤1.00

S440A

440A

1.4028

SUS440A

0.60~0.75

≤1.00

≤0.04

≤0.03

≤1.00

16.0-18.0

-

≤0.75

S32750

SAD2507

1.4410

≤0.03

≤1.2

≤0.035

≤0.02

≤0.80

24.0-26.0

6.0-8.0

3.0-5.0

S31803

SAF2205

1.4462

≤0.03

≤2.0

≤0.03

≤0.02

≤1.00

21.0-23.0

4.0-6.5

2.5-3.5

N08904

904L

1.4539

≤0.0.3

≤2.0

≤0.035

≤0.03

≤1.00

18.0-20.0

23.0-25.0

3.0-4.0

FAQ:

  1. Q:What is your terms of payment?
    A:We usually accept T/T in advance, L/C for large sum.If you prefer other payments terms, please discuss.
  2. 问:交货条款是什么?
    A:EXW、FOB、CIF 等。
  3. 问:包装条款是什么?
    A:一般情况下,我们用棒或带将货物包装成捆或线圈,我们也可以根据客户的要求包装货物。
  4. 问:你们的交货时间是多少?
    A:对于库存产品,我们可以在收到定金后 7 天内发货。对于定制订单,生产时间为
    收到定金后 15-30 个工作日。
  5. 问:你们可以根据样品生产吗?
    A: 是的,我们可以根据您的样品或技术图纸定制,我们可以制造模具和夹具。
  6. 问:如果我接受你们的质量,我可以下样品订单吗?你们的*小起订量是多少?
    答:是的,我们可以向您发送样品,但您可以支付快递费用,我们的*小起订量是 1 吨。
  7. 问:你们如何保证你们的产品?
    答:我们接受并支持第三方检验。我们也可以向客户提供保修以保证质量。
  8. 问:装运港在哪里?
    A:天津、厦门、宁波或上海港。
  9. 问:我怎样才能得到所需产品的价格?
    答:如果您可以将材料、尺寸和表面发送给我们,这是*好的方式,这样我们可以为您生产以检查质量。如果您
    仍有任何疑问,请联系我们,我们很乐意为您提供帮助。

Material 200 series,300 series,400 series,600 series, etc.
Type Welded
Specification 3.0mm~1000.0mm
Section Shape Round,Square,Hexagonal,etc.
Technique Cold Rolled,Hot Rolled,Cold Drawn,etc.
Surface Brushed, Polished, Etched,etc.
Surface Finish 2B,BA,HL,NO.4,8K,Embossed,etc.
Processing Service Bending, Welding, Punching, Cutting, Moulding
Minimum Order Quantity Negotiable
