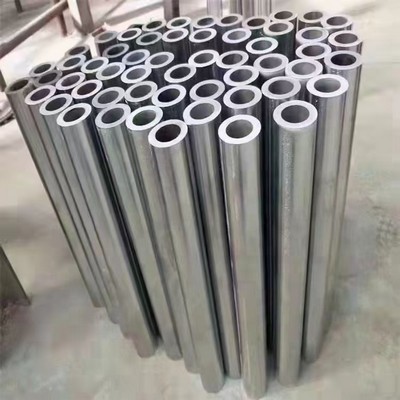

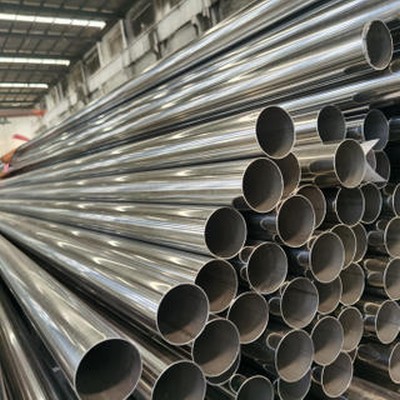

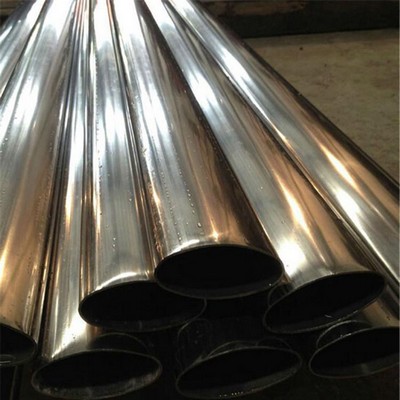

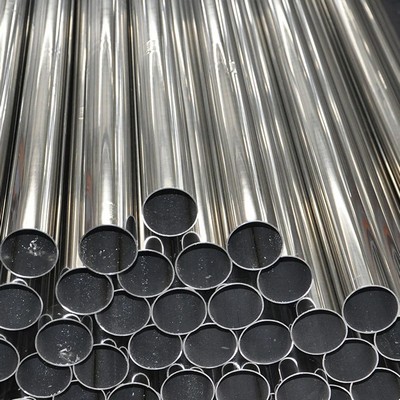

Stainless steel tube is a kind of hollow long round steel.Stainless steeltubes are mainly used in piping systems for transporting liquids or gases.We manufacture steel pipes from alloy steel containing nickel and chromium, which makes stainless steel corrosion-resistant.Stainless steel tubing is oxidation resistant and a low maintenance solution for high temperature and chemical applications. Because stainless steel tubing is easy to clean and sterilize, it is also required for use in food, beverage and pharmaceutical applications.
Stainless steel tubes have good corrosion resistance, which is extended from stainless steel itself in contact with water or in a humid environment for a long time without rusting. Some stainless steel pipes developed by modern technology can be washed by chemical liquids for a long time without rusting. damage occurs;
Stainless steel tube has good ductility, which is its second major advantage, because the structure of stainless steel material can withstand a certain external force, although it will deform to some extent, but generally there will be no brittle failure like cast iron pipe. .
The stainless steel tube has a long service life, which is why the stainless steel will not easily undergo physical and chemical reactions whether it is buried in the ground or exposed to the air.
Stainless steel tube is a kind of hollow long round steel.Stainless steeltubes are mainly used in piping systems for transporting liquids or gases.
We manufacture steel pipes from alloy steel containing nickel and chromium, which makes stainless steel corrosion-resistant.
Stainless steel tubing is oxidation resistant and a low maintenance solution for high temperature and chemical applications. Because stainless steel tubing is easy to clean and sterilize, it is also required for use in food, beverage and pharmaceutical applications.
Stainless steel tubes mainly go through 14 production processes: a. Round steel preparation; b. heating; c. Hot rolling perforation; d. Cut the head; e. Pickling; f. Grinding; g. Lubrication; h. Cold-rolled processing; i. Degreasing; j. Solution heat treatment; k. Straightening; l. Cut pipe; m. Pickling; n. Product testing.
Stainless steel tubes have good corrosion resistance, which is extended from stainless steel itself in contact with water or in a humid environment for a long time without rusting. Some stainless steel pipes developed by modern technology can be washed by chemical liquids for a long time without rusting. damage occurs;
Stainless steel tube has good ductility, which is its second major advantage, because the structure of stainless steel material can withstand a certain external force, although it will deform to some extent, but generally there will be no brittle failure like cast iron pipe. .
The stainless steel tube has a long service life, which is why the stainless steel will not easily undergo physical and chemical reactions whether it is buried in the ground or exposed to the air.
| Chemical Material Composition of SS 304 seamless pipes | ||||||||||
| Grade | Mn | C | P | Si | Cr | S | Ni | Mo | N | |
| Stainless Steel 304 Seamless Pipe | minimum | – | – | – | – | 18 | – | 8 | – | – |
| maximum | 2 | 0.08 | 0.045 | 0.75 | 20 | 0.03 | 10.5 | 0.1 | ||
| Yield Strength of asme sa312 grade 304 pipes | |||||
| Grade | Strength of Yield 0.2% Proof (MPa) minimum | Elongation (% in 50mm) minimum | Strength of Tensile (MPa) minimum | Pipes Hardness | |
| Brinell (HB) maximum | Rockwell B (HR B) maximum | ||||
| Stainless Steel 304 Seamless Pipe | 205 | 40 | 515 | 201 | 92 |
| product name | Stainless Steel Pipe Supplier | |||
| Grade | 201.202.301.302.304.304L.309S.310S.316.316L.321.410.430.430A. | |||
| 440A.440B.440C.904L.2205.2507.2520 ect. Or Customized | ||||
| Standard | GB, AISI, ASTM, ASME, EN, BS, DIN, JIS | |||
| Surface | Satin Finish(180#.240#.320#).,Bright Finish(400#,600#,mirror), | |||
| Mill Finish(2B),Hairline-Finish | ||||
| (HL/Brushed),Ti-gold, Glossy matt,dull and so on. | ||||
| specifications | Outer diameter | 6mm-630mm or customized | ||
| Wall thickness | 0.1-30mm or customized | |||
| Length | 0.3-15.8m or customized | |||
| Technique | Cold rolled | welding or customized | ||
| Hot rolled | seamless | |||
| Test and Inspection | Squash test, extended test, water pressure test, crystal rot test, heat treatment, NDT | |||
| Thickness tolerance | ±0.05mm | |||
| Austenitic Stainless Steel | 201, 301, 303, 304, 304L, 309S, 310S, 316/316L, 321, 347, 904L, etc | |||
| Martensitic Stainless Steel | 410, 414, 416, 416, 420, 431, 440A, 440B, 440C, etc | |||
| Duplex Stainless Steel | S31803, S32101, S32205, S32304, S32750, etc | |||
| Ferritic Stainless Steel | 429, 430, 433, 434, 435, 436, 439, etc | |||
ASTM A213: Seamless Ferritic and Austenitic Alloy Steel Pipes for Boilers, Superheaters, and Heat Exchangers.
ASTM A269: Boilers, Heat Exchangers, Superheaters, and Condensers.
ASTM A312: Piping for Corrosive Fluids.
ASTM A514: For medium and high temperature service boilers, pressure vessels.
ASTM A789: Petrochemical industry, fertilizer industry, oil refining industry, oil and gas industry.
DIN: 17456/17458: Pipes for construction pipes, food, pharmaceutical and automotive industries, household installation and decorative purposes.
JIS: G3459: Pipes for corrosion resistance, low temperature and high temperature service.
JIS G3463: Mechanical industry, chemical industry, thermal equipment, mining, construction and decoration.
Every industry has its unique set of material specifications and needs. That’s why you can count on the exceptional experience and industry knowledge of the professionals at Kuaima Steel - Meeting the Exact Needs of Every Industry That Uses steel.
We are a well known worldwide exporter of Steel Pipes and Tubes Qatar, Ireland, Portugal, Gambia, Thailand, Ukraine, United Kingdom, Netherlands, South Africa, Spain, Turkey, Italy, Libya, Romania, Puerto Rico, Azerbaijan, United Arab Emirates, Pakistan, Philippines, Ghana, Slovakia, Germany, Saudi Arabia, Afghanistan, China, Bolivia, Switzerland, Bangladesh, Taiwan, Oman, Egypt, Greece, Norway, Singapore, Bulgaria, Estonia, Belgium, Yemen, Hong Kong, Ecuador, Sri Lanka, Nepal, Belarus, Finland, Gabon, Iran, Canada, Argentina, Lebanon.
