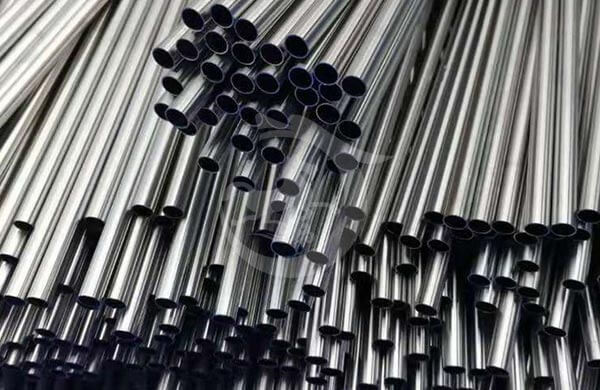

Food Grade Stainless Steel Sanitary Tubing is the part of food machinery in contact with food, must meet certain food safety requirements. Food grade stainless steel process to use a lot of acid and alkali, and stainless steel contains chromium, unqualified stainless steel, will dissolve a variety of valence of chromium, toxic; and the requirement to limit the content of lead, cadmium and many other alloy impurity elements.
Safe
Firstly, safe is the most important factor to consider for food processing, stainless steel contains various chemical elements to maintain its properties, some elements in large quantities are harmful to human health, according to study and research, standard stainless steel is safe, like Nickel and Chromium contents, they are not harmful in small quantities, we believe that stainless steel is one of the safest materials for food industry, nowadays, stainless steel is widely used in food industry.
Excellent Corrosion Resistance
Stainless steel have better corrosion resistance compared to other metals, there is a protective layer on the surface of stainless steel to prevent corrosion attack, and it has self repair ability, so it is not easy to rust and stain in right way.Stainless steel can resist pitting, chipping, crazing, scratching, scoring, distortion, and decomposition, in kitchens, corrosion resistant to various acids found in meats, milk, fruits and vegetables.
Easy To Clean
Surface of stainless steel is always smooth, according to ASTM A270 sanitary tubing standard and 3 A sanitary standard, stainless steel roughness can be reached at high level, there are no place to hide residue.For stainless steel material, there are multiple finishes to select, such as 2B, BA, polishing.
Product Name | Stainless steel tubes/pipes |
Standard | ASTM A213, ASTM A312, ASTM A789, ASTM A790 |
Material Grade | 201/202/304/316/S31803/S32750 |
Outer Diameter | 0.1mm-219.1mm |
Thickness | 0.05mm-20mm |
Length | ≤12000mm or as per customer request |
Tolerance | a) Outer Diameter: +/-0.2mm |
b) Thickness: +/- 10% OR as customer request | |
c) Length: +/- 10mm | |
Surface | Satin / Hairline: 180#, 320# |
Polish: 400#, 600#, 800# or Mirror surface | |
Application | Decoration (Processed into railings, handrails, doors and Windows) |
medical, industry, etc | |
packing | Plastic bag/woven packing |
(please send details packing to us if you have other requirements) |
| STAINLESS STEEL SANITARY TUBE GRADES | UNS | C | Mn | P | S | Si | Cr | Ni | Mo | Ti | Nb | N |
| TP304 | S30400 | 0.08 | 2 | 0.045 | 0.03 | 1 | 18.0-20.0 | 8.0-11.0 | ||||
| TP304L | S30403 | 0.035 | 2 | 0.045 | 0.03 | 1 | 18.0-20.0 | 8.0-13.0 | ||||
| TP316 | S3160 | 0.08 | 2 | 0.045 | 0.03 | 1 | 16.0-18.0 | 11.0-14.0 | 2.0-3.0 | |||
| TP316L | S31603 | 0.035 | 2 | 0.045 | 0.03 | 1 | 16.0-18.0 | 10.0-14.0 | 2.0-3.0 |
| Material | Heat | Temperure | Tensile Strength | Yield Strength | Elongation %, Min |
| Treatment | Min. | Ksi (MPa), Min. | Ksi (MPa), Min. | ||
| º F(º C) | |||||
| TP304 | Solution | 1900 (1040) | 75(515) | 30(205) | 35 |
| TP304L | Solution | 1900 (1040) | 70(485) | 25(170) | 35 |
| TP316 | Solution | 1900(1040) | 75(515) | 30(205) | 35 |
| TP316L | Solution | 1900(1040) | 70(485) | 25(170) | 35 |
