Monel K500 alloy is a new alloy with excellent corrosion resistance, as well as higher strength and hardness than Monel 400. This is due to the presence of diffuse intermetallic compounds in the matrix after certain heat treatment by adding Al and Ti to the alloy. The tissue structure is single-phase austenite and precipitated by diffuse Ni3 (Al, Ti) phase.
Monel K500 alloy is mainly used for pump shafts and impellers, conveyor scrapers, oil well drilling rings, elastic parts, valve gaskets, etc. Others can also be manufactured for various heat exchange equipment, boiler feedwater heaters, petroleum and chemical pipelines, vessels, towers, tanks, valves, pumps, reactors, shafts, etc. Due to the low corrosion rate in flowing seawater and the high strength of this alloy, Monel K500 is suitable for manufacturing centrifugal pump shafts that are resistant to seawater corrosion. It is applicable in static and flowing seawater.
Ni | 63.0min |
Cu | 27min~33max |
Fe | 2.0max |
Mn | 1.5max |
C | 0.25max |
Si | 0.5max |
Al | 2.3min~3.15max |
Ti | 0.35min~0.85max |
S | 0.01max |
Density | 0.318 lb / in3 |
8.80g/cm3 | |
Modulus of elasticity | 26 000 ksi |
Resistivity | 5.11e-005 ohm-cm |
Heating energy | 0.427 J/g-°C |
Thermal conductivity | 22 W/m-°C |
Melting point | 1300 - 1350 °C |
Magnetic properties | 200H(At 70 F) |
Coefficient of thermal expansion, in./in./ F x 106 |

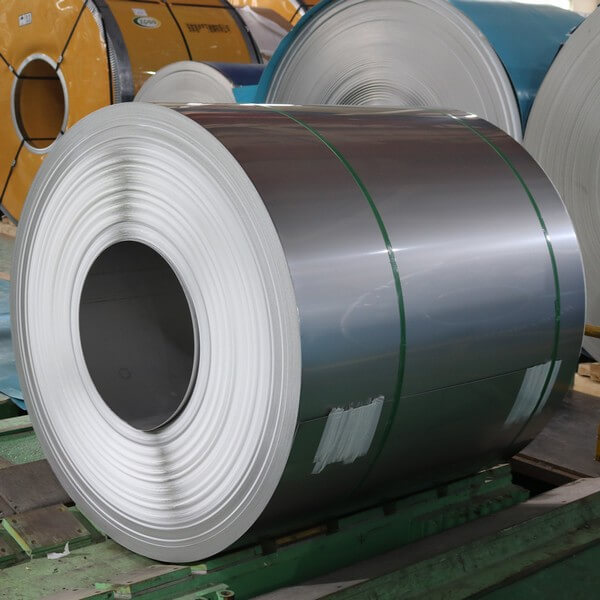

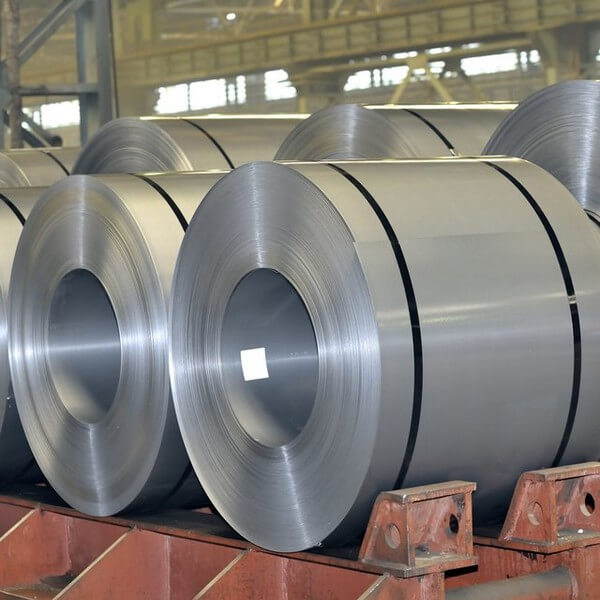

Product Name | Monel K-500 K500 Steel Coil Strip Price W.Nr.2.4375 Nicu30Al Nickel Based Alloy Sheet Uns N05500 K500 Nickel Alloy Plate |
Type | Cold rolled/hot rolled |
Standard | GB,AISI,ASTM,DIN,EN,JIS |
Grade | Stainless steel 304 / 304L / 310S / 316L / 316Ti / 316LN / 317L / 904L / 2205 / 2507 / 32760 / 253MA / 254SMo / XM-19 / S31803 / |
Monel 400 / Monel K-500 | |
Inconel 600 / Inconel 601 / Inconel 625 / Inconel 617 / Inconel 690 / Inconel 718 / Inconel X-750 | |
Incoloy A-286 / Incoloy 800 / Incoloy 800H / Incoloy 800HT | |
Incoloy 825 / Incoloy 901 / Incoloy 925 / Incoloy 926 | |
Nimonic 75 / Nimonic 80A / Nimonic 90 / Nimonic 105 / Nimonic C263 / L-605 | |
Hastelloy B / Hastelloy B-2 / Hastelloy B-3 / Hastelloy C / Hastelloy C-276 / Hastelloy C-22 | |
Hastelloy C-4 / Hastelloy C-2000 / Hastelloy G-35 / Hastelloy X / Hastelloy N | |
PH stainless steel 15-5PH / 17-4PH / 17-7PH | |
Thickness | hot rolled 2.5mm-200mm |
cold rolled 0.3mm - 6mm | |
width | hot rolled 1000mm-3500mm |
cold rolled 10mm - 2000mm | |
Application | Construction, Chemical, Pharmaceutical & Bio-Medical, Petrochemical & Refinery, Environmental, Food Processing, Aviation, Chemical |
Processing Service | Machining : Turning / Milling / Planing / Drilling / Boring / Grinding / Gear Cutting / CNC Machining |
Deformation processing : Bending / Cutting / Rolling / Stamping | |
Welded | |
Forged |
