wholesale aluminum tube
aluminum tube dimension
01 / 03

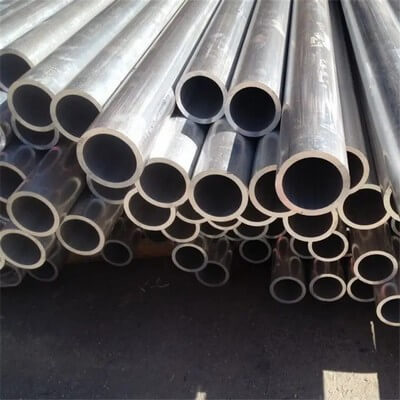

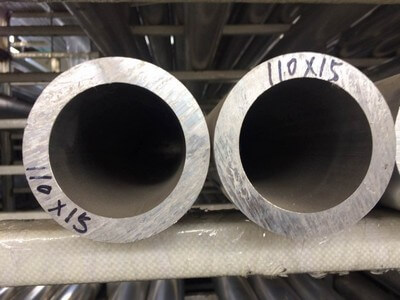

aluminum tube

Aluminum tube is a kind of non-ferrous metal tube, which is made of pure aluminum or aluminum alloy extruded and processed into a hollow metal tube material along its longitudinal length. It can have one or more closed through-holes, uniform wall thickness and cross-section, and delivered in a straight line or in a roll.

Product Details

aluminum tube advantages

  1. arrow iconFirst, welding technology advantages: suitable for industrial production of thin-walled copper and aluminum tube welding technology, known as a world-class problem, is the key technology of the air conditioner connection tube aluminum instead of copper.
  2. arrow iconSecond is the service life advantage: from the aluminum tube wall, because the refrigerant does not contain moisture, copper and aluminum connection tube wall will not occur corrosion phenomenon.
  3. arrow iconThird, the energy-saving advantage: air conditioner indoor unit and outdoor unit connection pipeline, the lower the heat transfer efficiency, the more energy efficient, or, the better insulation effect, the more power saving.
  4. arrow iconFourth, the excellent bending performance, easy to install and move the machine

Aluminum tube chemical composition

Element Silicon Iron Copper Manganese Magnesium Chromium Zinc Titanium Aluminum Other Elements (each) Other Elements (total)
3105 0.6 0.7 0.3 0.30-0.8 0.20-0.8 0.2 0.4 0.1 balance 0.05 0.15

Aluminum tube mechanical properties

  TensileYieldElongation (%) for theTensileYieldElongation (%) for the
  StrengthStrengthfollowing gauge ranges:StrengthStrengthfollowing gauge ranges:
AlloyTemper(ksi)(ksi)0.010-0.050˝0.051-.125˝(MPa)(MPa)0.25-1.25mm1.26-3.0mm
1100O135303289.634.5306
 H121615412110.3103.4412
 H141817310124.1117.2310
 H16212028144.8137.928
 H18242226165.5151.726

Aluminum tube Specification

ItemAluminum pipe , Aluminum round tube
StandardASTM,JIS,SUS,DIN,GB,EN,etc.
Material1050,1200,1100,2024,2124,3003,3004,5050,5083,
NaN5154,5454,5652,5086,5056,5754,6061,6062,6063,7075,etc.
SizeDiameter:3mm-800mm
NaNLength:1m-12m or as required.
SurfaceAnodizing,brush,sand blast,powder coating,polished,mill,polished,etc.
ApplicationWidely used in Automobiles, ships, aerospace, aviation,electrical appliances,
NaNagriculture,electromechanical,household appliances, etc.
Export toAmerica,Australia,Brazil,Canada,Peru ,India,France,
NaNSpain,Thailand,Korea,Arab,United Kingdom,etc.
PackageStandard export package,suit for all kinds of transportation,or as customer's requirement.
Container size20ft GP:5898mm(Length)*2352mm(Width)*2393mm(High)
NaN40ft GP:12032mm(Length)*2352mm(Width)*2393mm(High)
NaN40ft HC:12032mm(Length)*2352mm(Width)*2393mm(High)
ContactIf you have any question,please feel free to contact me
NaNWe promise your inquiry or requirements will get prompt attention.
